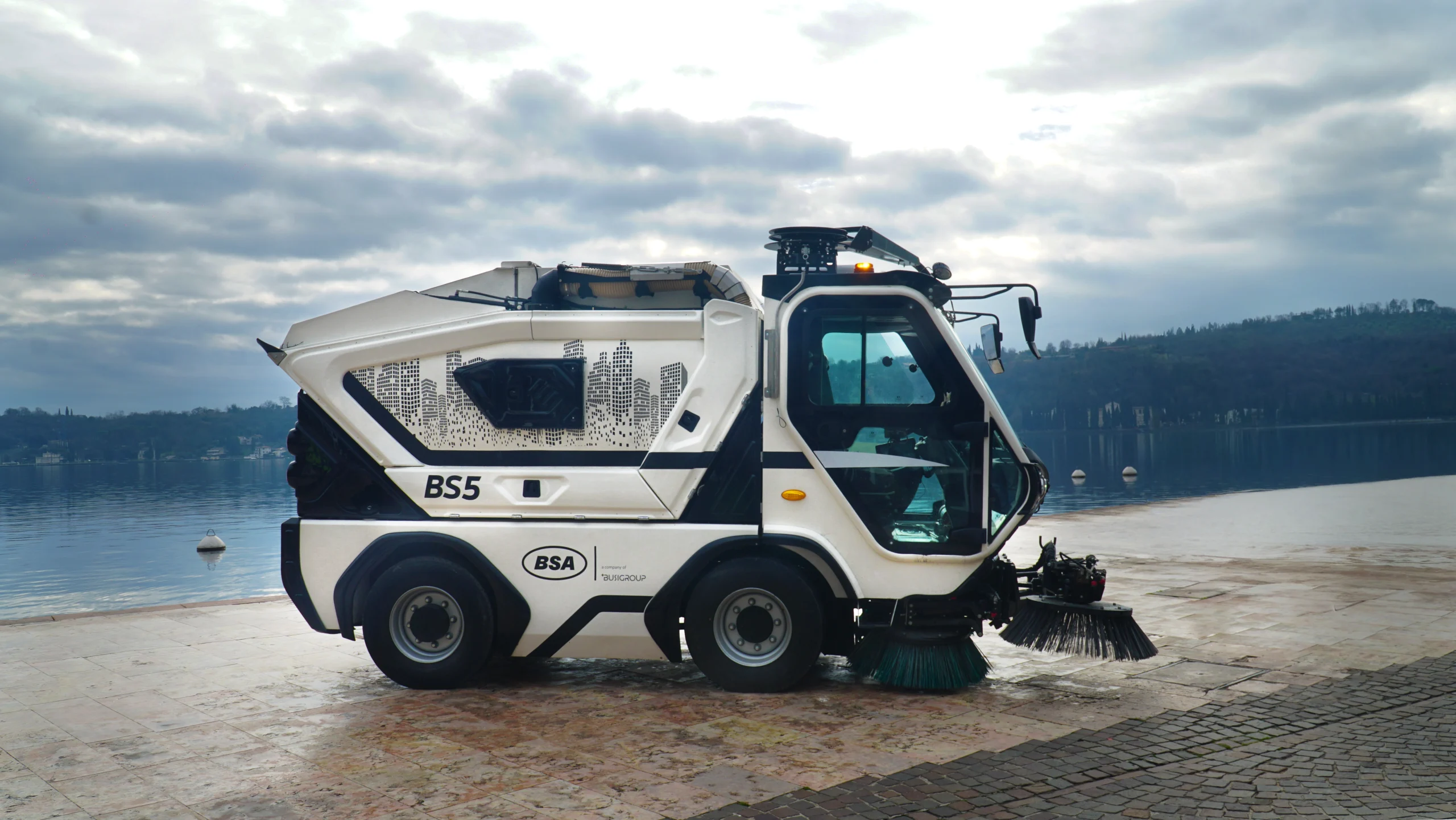

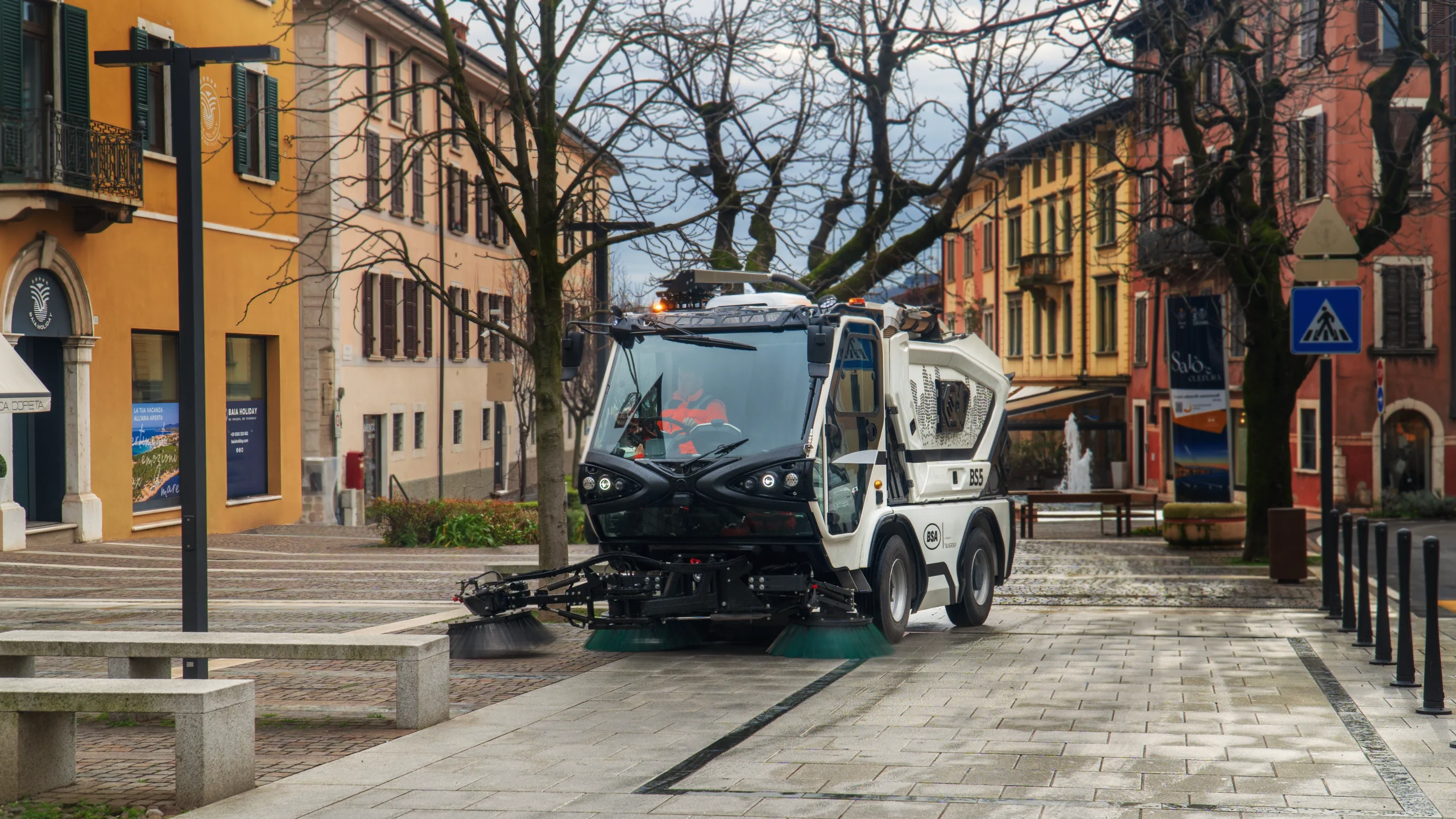

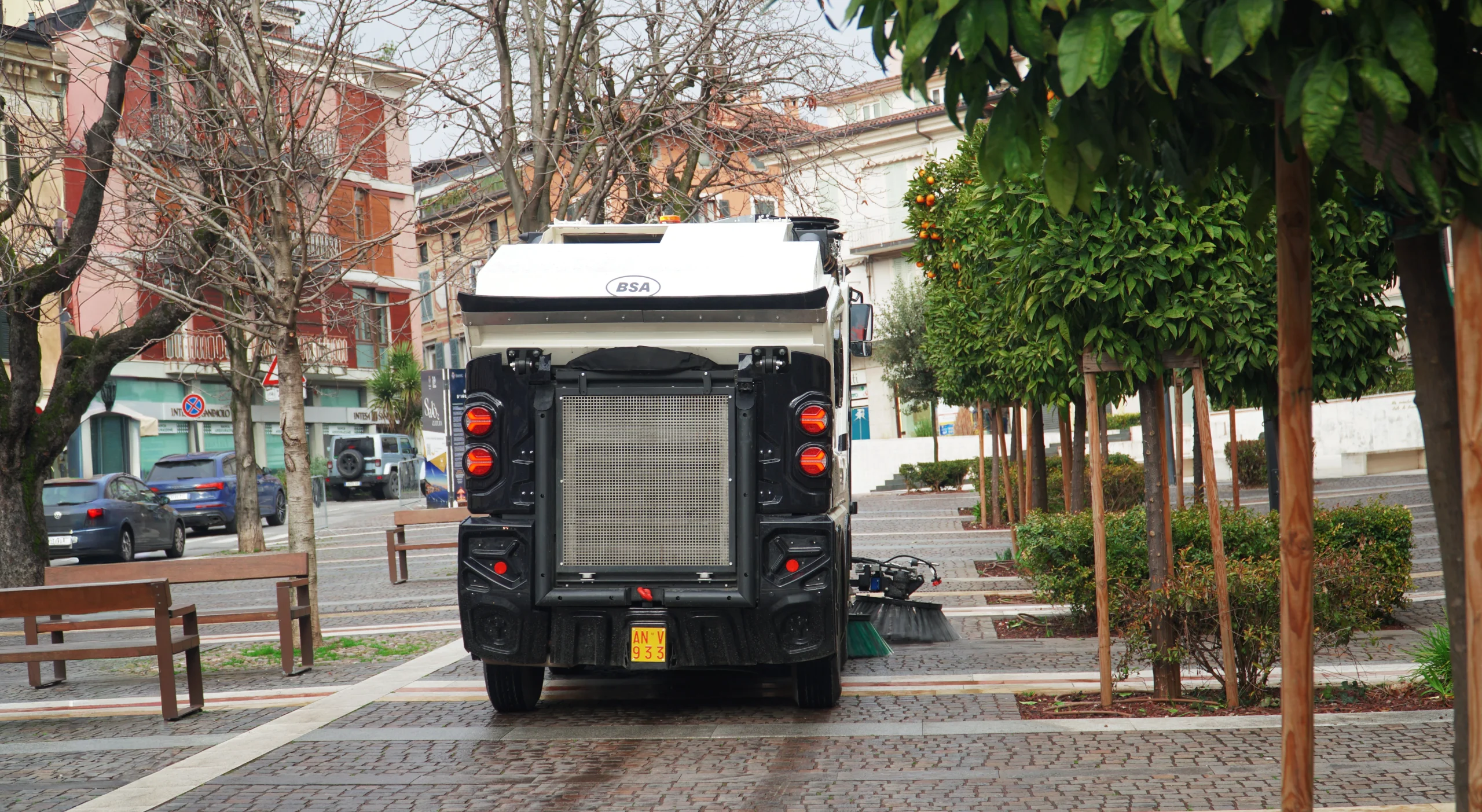

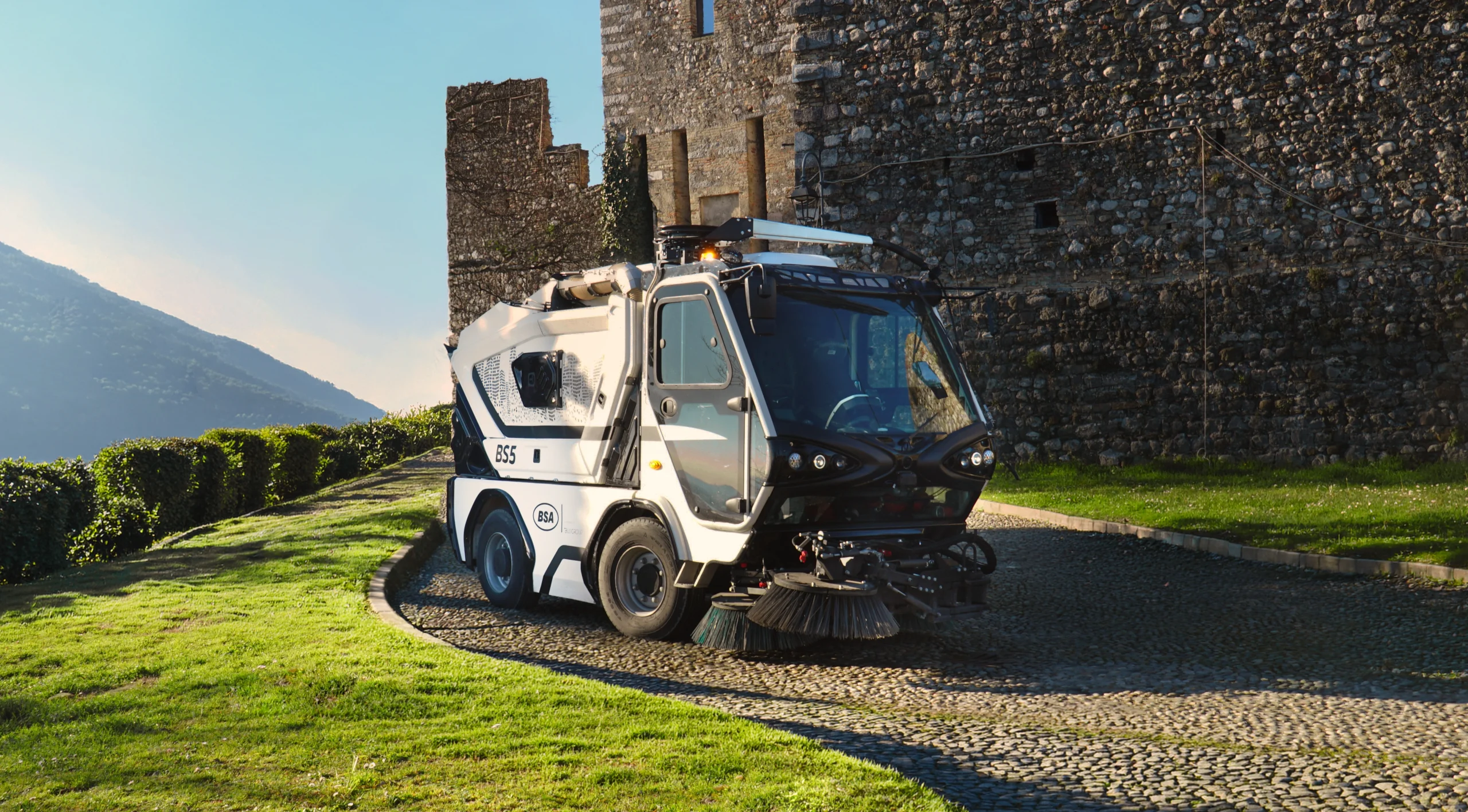

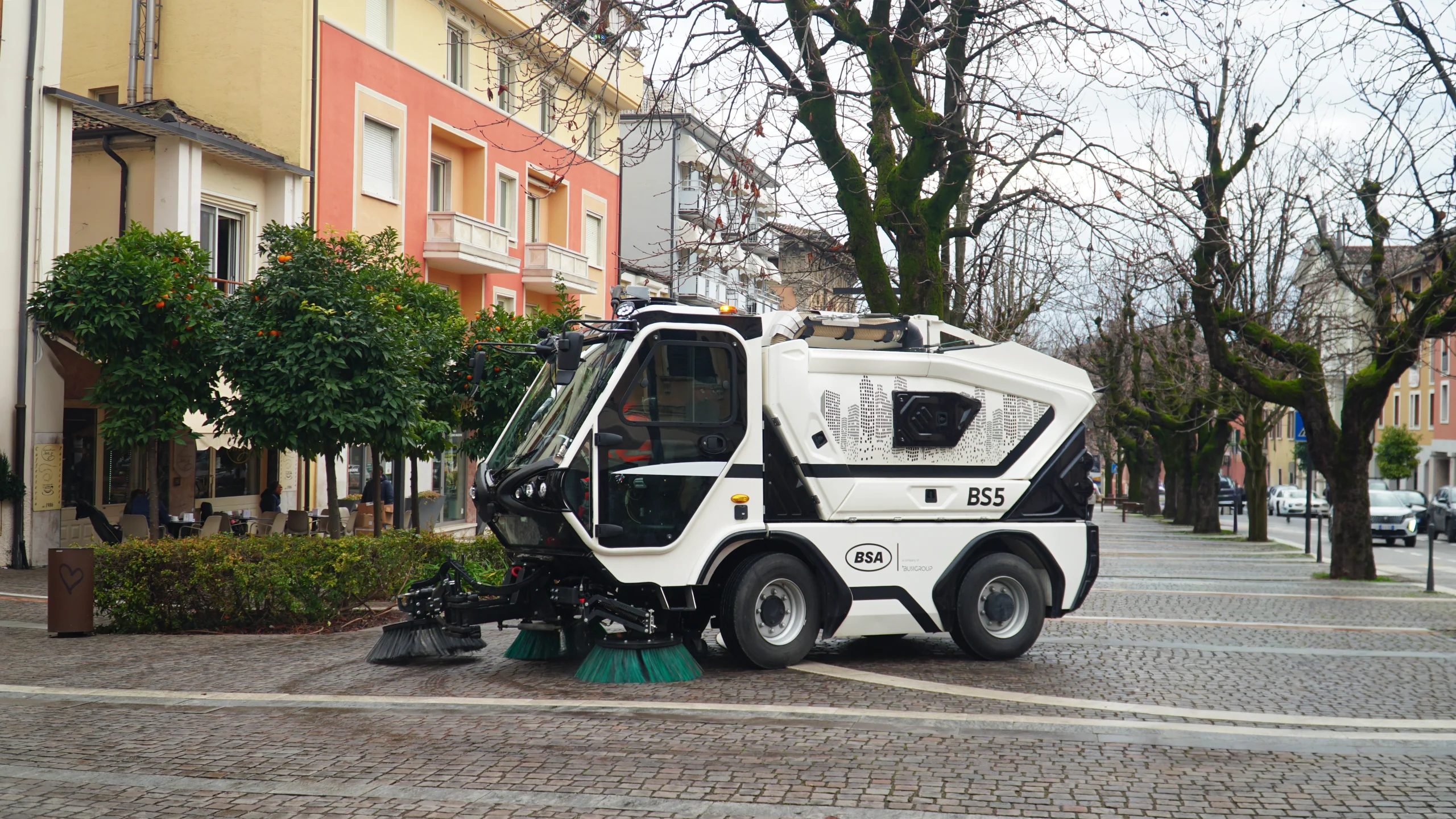

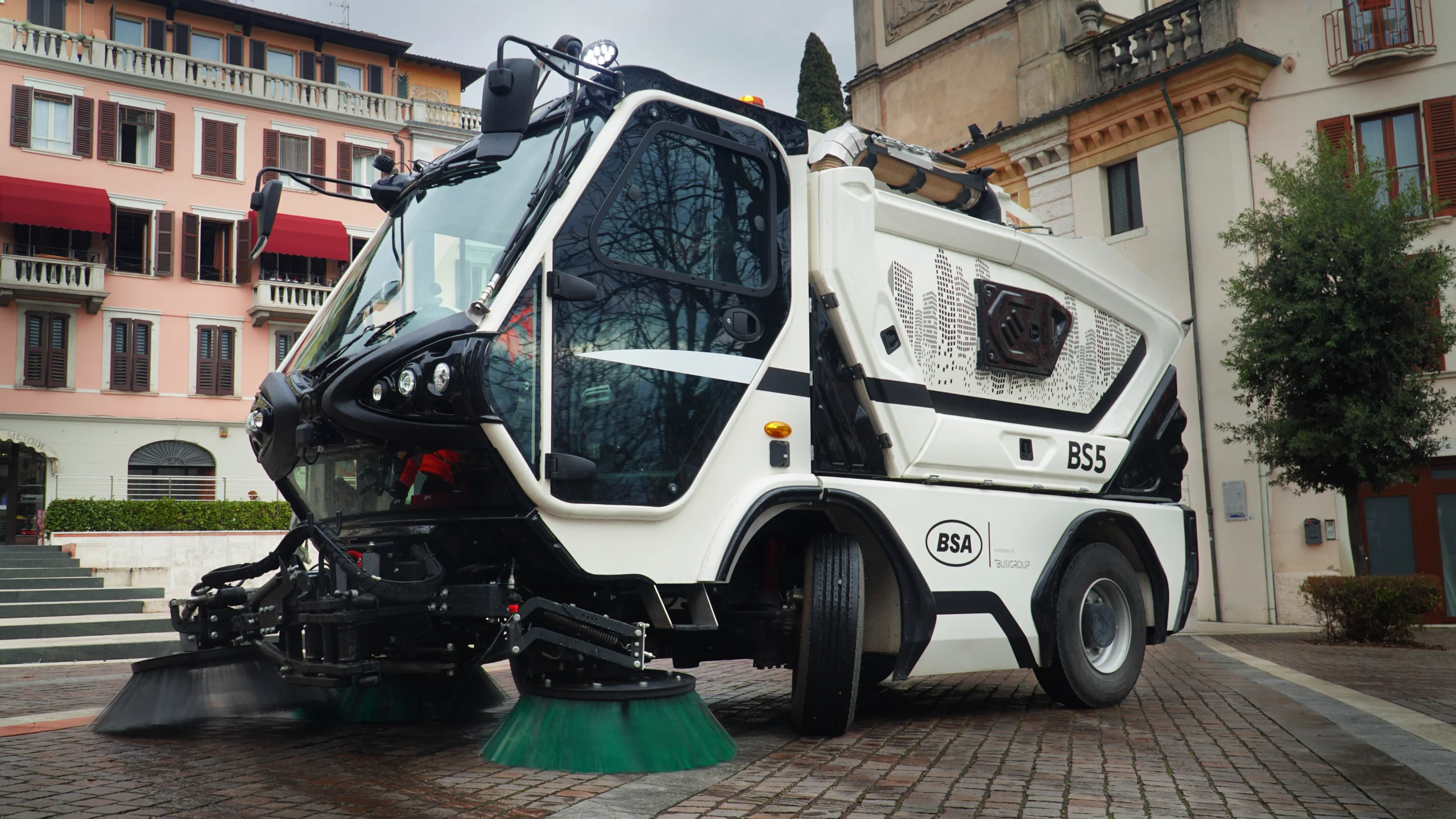

SWEEPER
BS5
Compact Sweeper
- Waste hopper capacity: 5 m³ (gross)
- Stainless steel hopper
- Water tank capacity approx. 1000 L (640 L clean, 350 L recirculated)
- Assisted closure for leaf suction channel
- Hydraulic opening of suction mouth for bulky debris
- Turbine exhaust on top of hopper
- Access hatches for bulky waste
- 10” control monitor

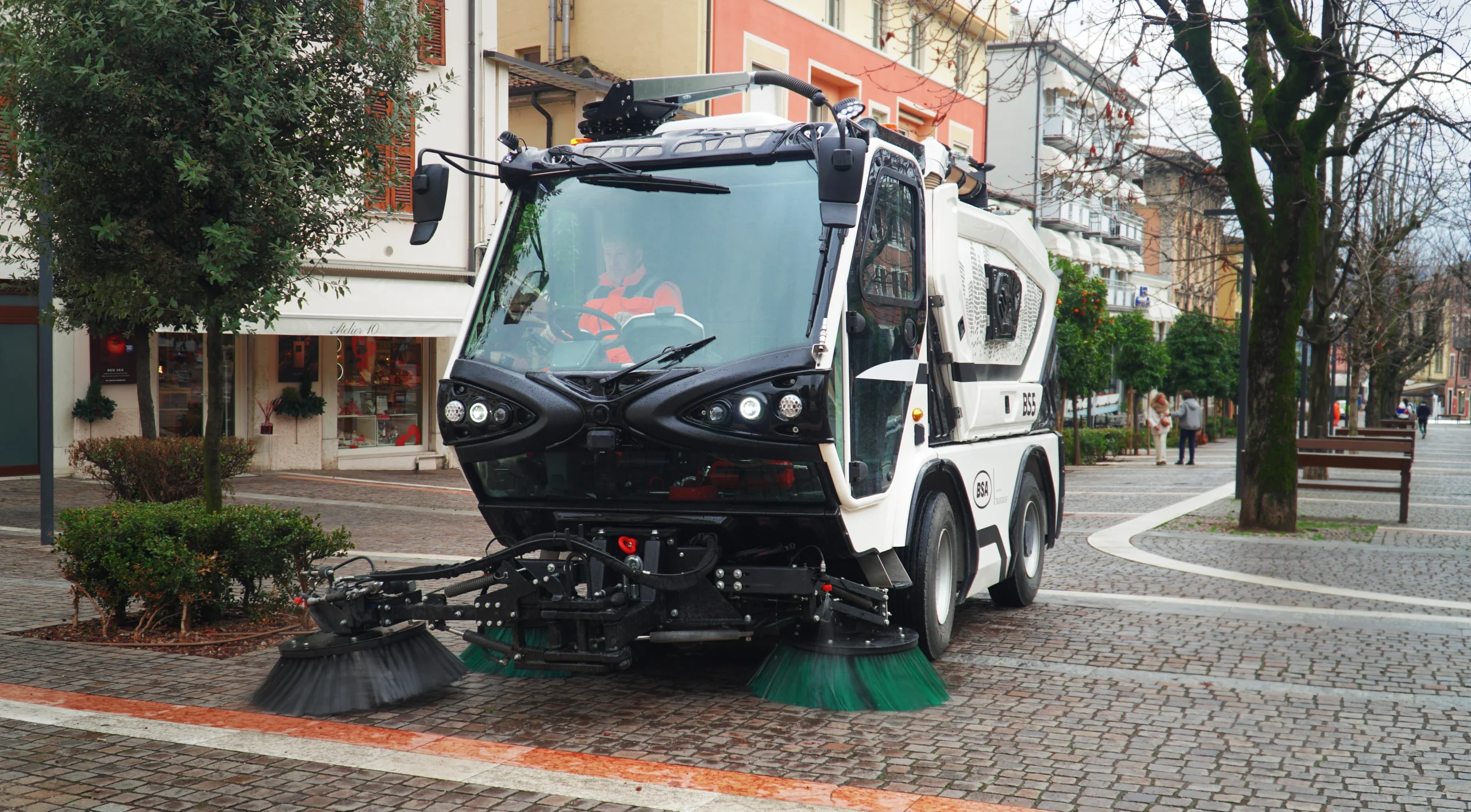

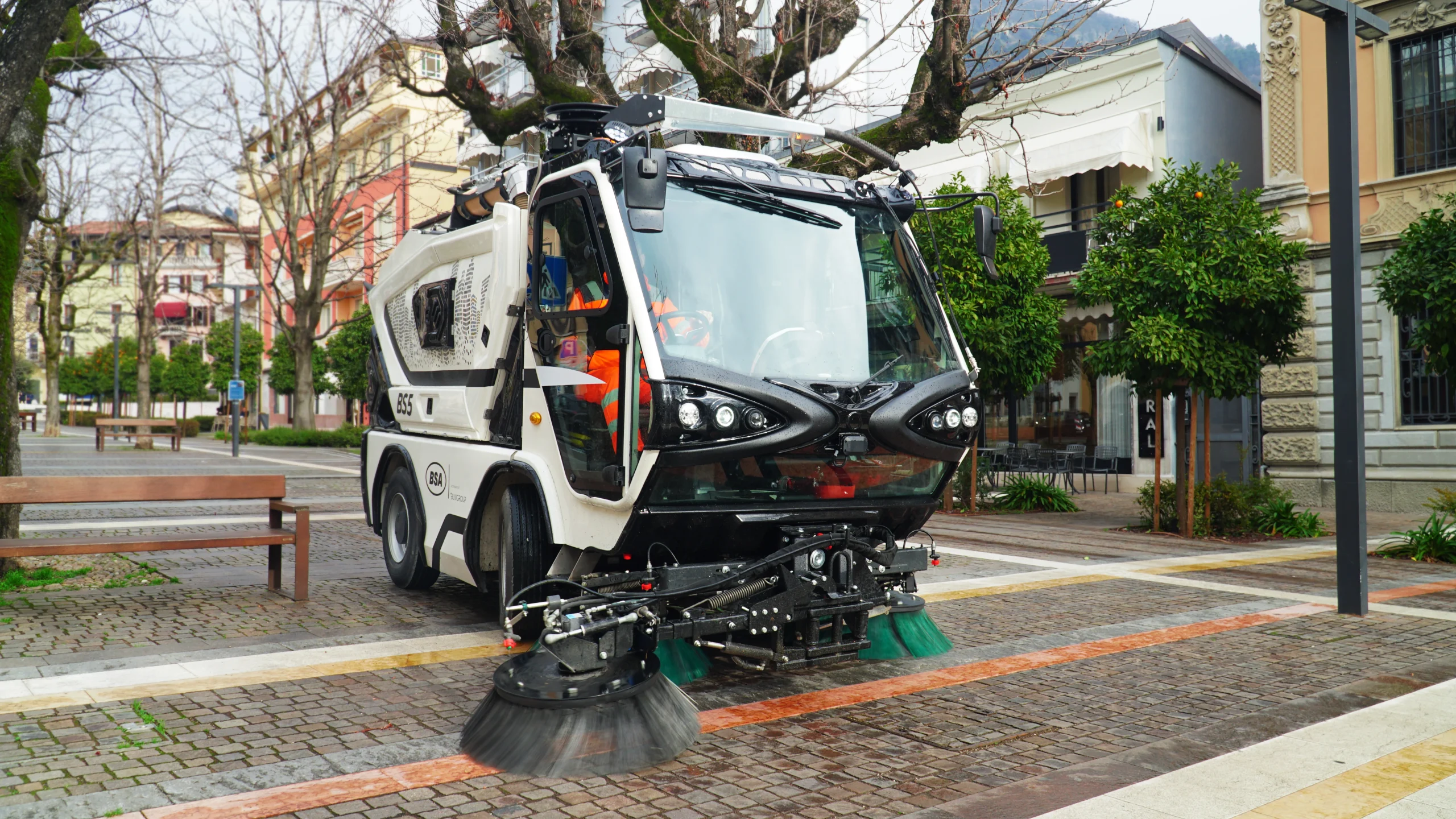

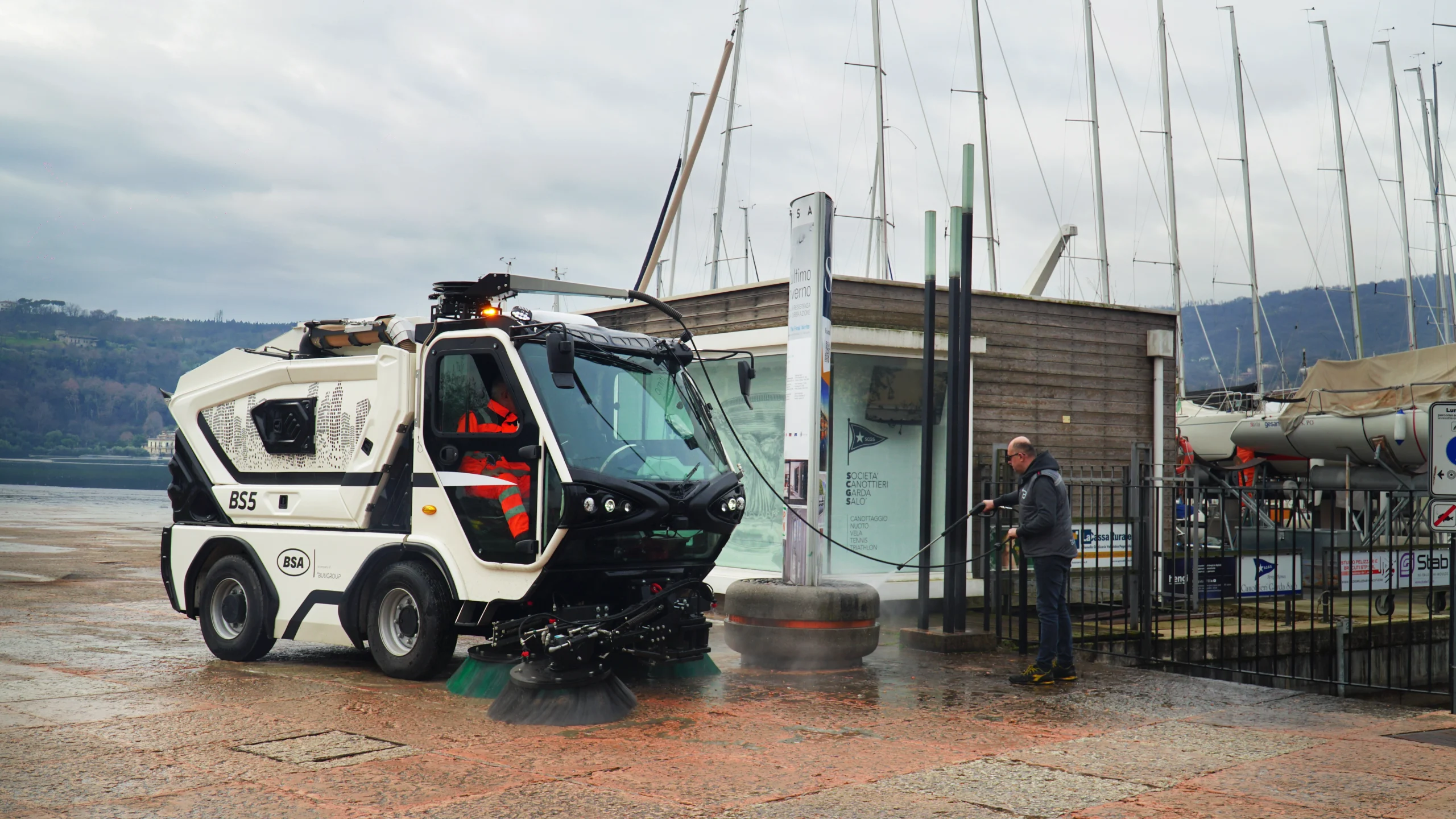

The BS5 is an innovative street sweeping solution designed to deliver high performance, reliability and consistent cleaning efficiency while ensuring maximum safety in urban environments.
The combination of premium materials, innovative engineering solutions and meticulous attention to detail makes the BS5 the ideal choice for urban street cleansing, road maintenance and resurfacing operations
The waste container, as well as the water and fuel tanks, are entirely manufactured from stainless steel. An efficient water recirculation system ensures effective dust suppression, keeping streets clean and reducing environmental impact.

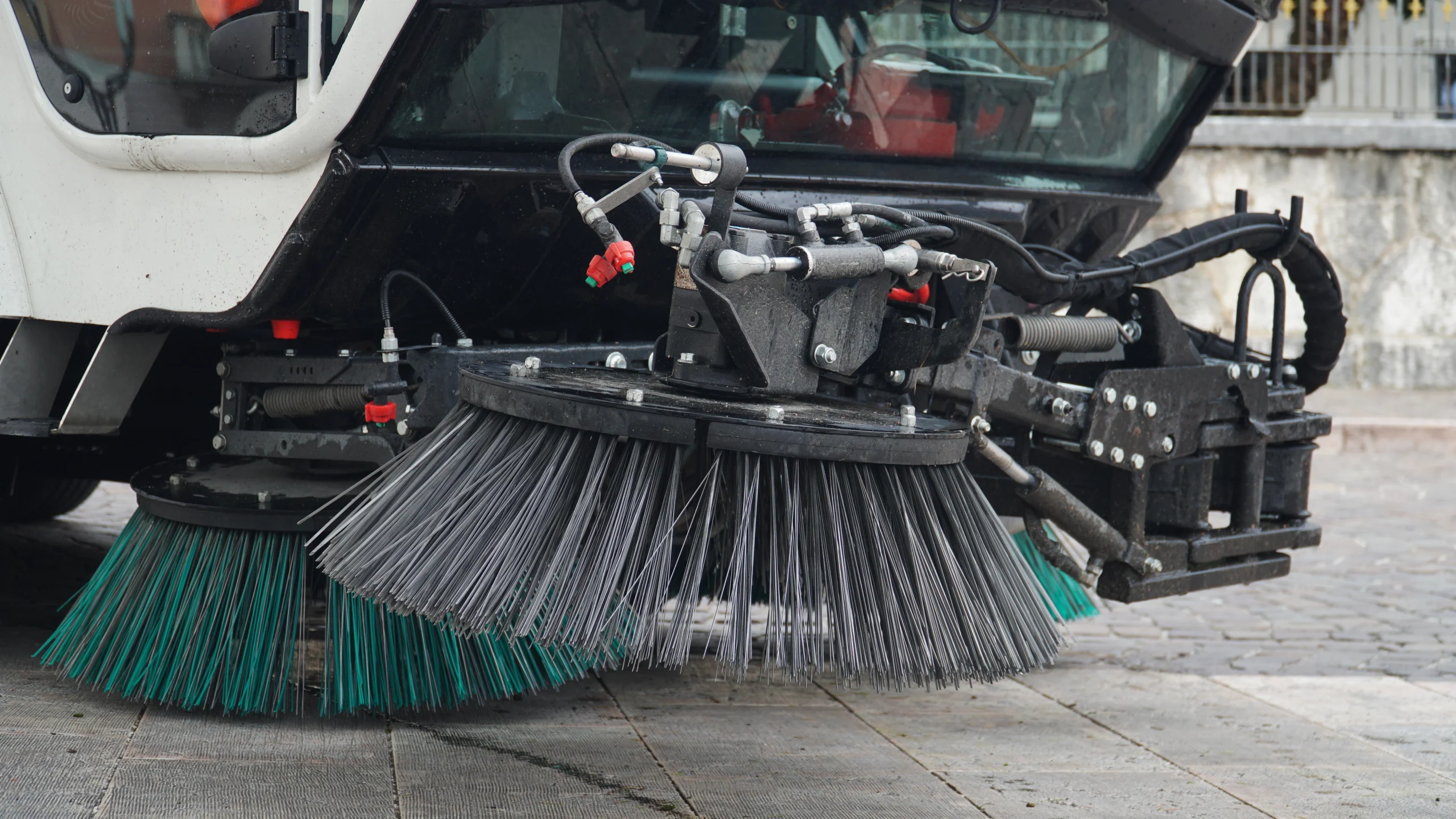

The sweeping unit features segmented brushes with a quick-change system, available in steel, mixed PPL + steel, or full PPL configurations. The brushes are driven by a high-efficiency hydraulic motor, providing optimal sweeping capability even under demanding conditions.
The heavy-duty suction fan is built from high-resistance steel, with variable speed between 1500 and 2500 rpm to tailor performance to diverse operating scenarios. The suction mouth, mounted on a transversal sliding frame, is equipped with two super-elastic rubber wheels and a hydraulically actuated shutter, fully controlled from the cabin. Brush height adjustment is also managed directly from the operator’s station.
Main Features
Standard equipment
Auxiliary engine VM 6-cylinder 4.5 L
125 kW @2300 rpm, 600 Nm @1200 rpm, Euro 6 EH
Side brushes with quick-change system
Ø900 mm
Automotive-grade electronically controlled hydrostatic transmission
Dual CAN-BUS network
Biodegradable oil
HVO-compatible
DAB radio
Heated air-suspended driver seat
BSA F.E.W. simplified driving interface
Pressurized and air-conditioned cab
10” touchscreen

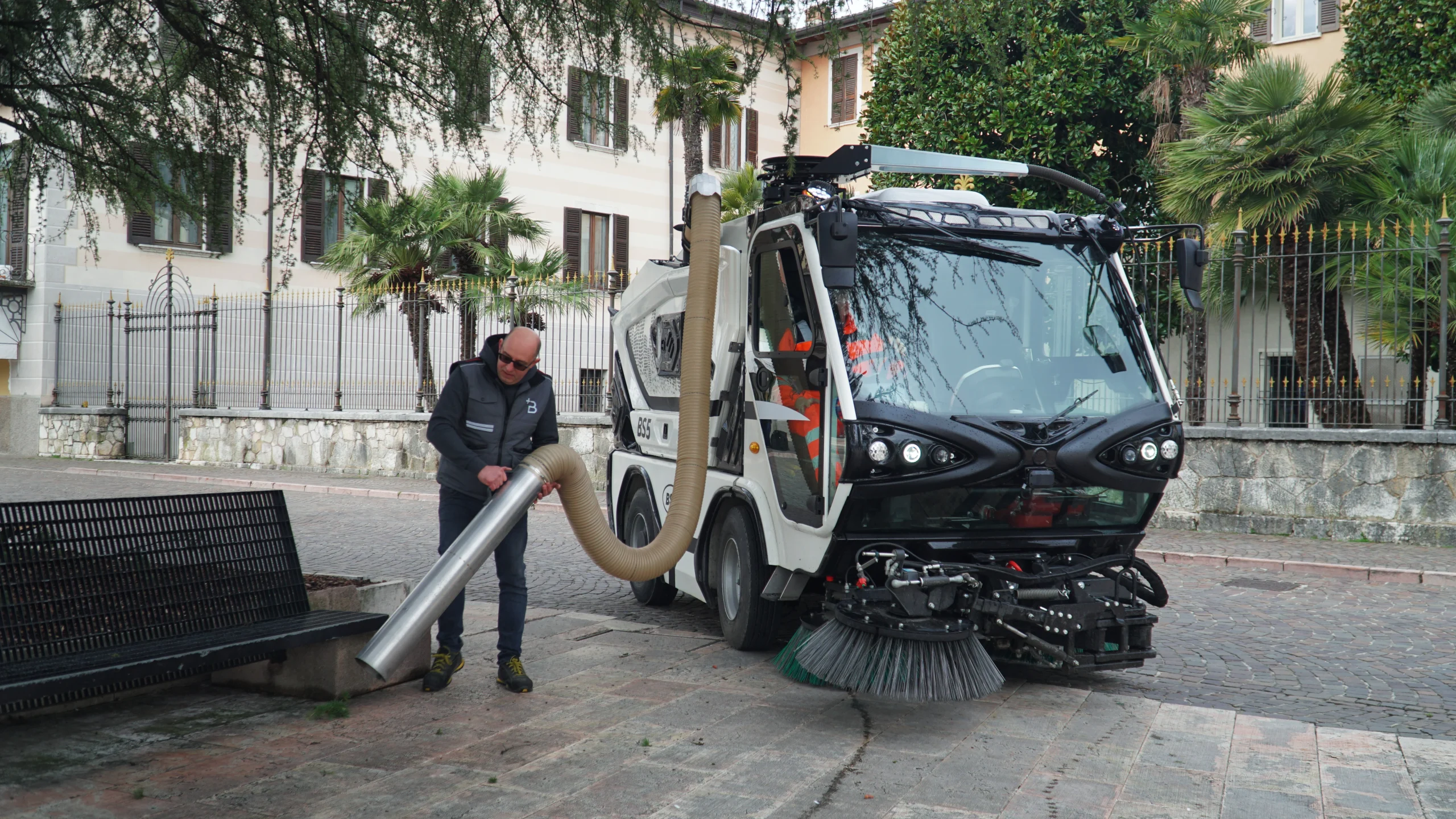

Suction hose
Ø250 mm
Eco mode
Optional
Third brush
In-cab adjustable brush tilt
Brush down-pressure control
Single or dual leaf-suction hose
High-level wash lance with boom
Front washing bar
High-pressure water pump
Third wiper
Suction mouth camera
Heated air-suspended passenger seat
Heated mirrors
Under-cab working light
Blind-spot and 360° vision system
CarPlay radio 10”
Rear parking sensors
Ecolabel-certified biodegradable oil
Model variations
| BS5 | Volume (m3) | Lenght (mm) | Width (mm) |
|---|---|---|---|
| BS5 | 5,2 | 4800 | 1900 |
