Sweepers
BS6 - BS8

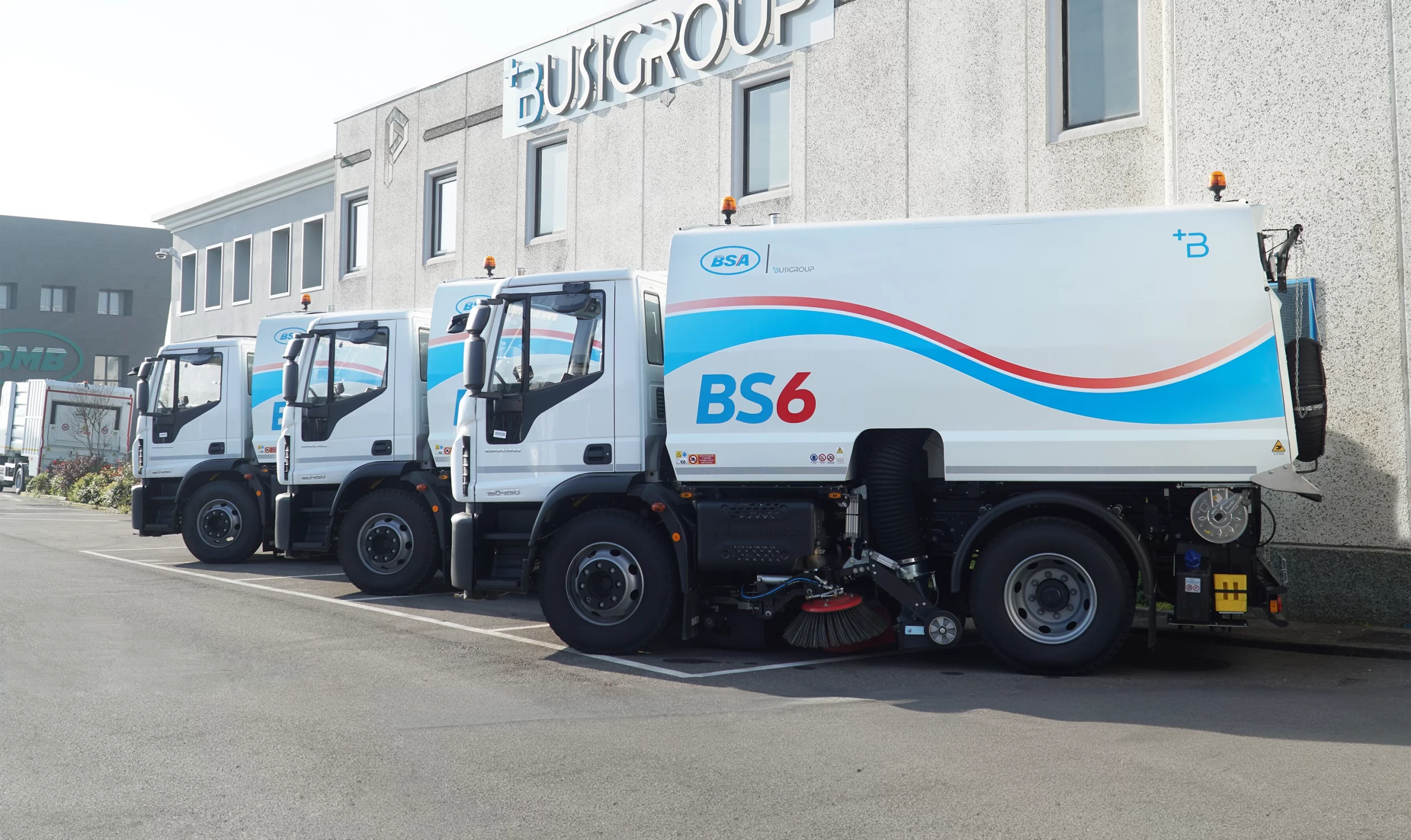

The most reliable street and asphalt sweeper
- Waste container capacity 7 - 9 cubic metres gross
- 4 mm thick stainless steel waste container
- Standard water tank capacity 2200 litres
- Can be mounted on Eurocargo 3105 - 3690 mm wheelbase
- Standard pneumatic filter grid opening
- Mechanical fan drive with V-belts
- Pneumatic tilting of the inlet for bulky debris
BSA's BS6 and BS8 road sweepers are perfect for sweeping roads and motorways and wherever long stretches of road surface need to be cleaned, for example after maintenance work, debris removal or for special cleaning operations.
They are designed to be reliable over time and offer high performance, ensuring efficient and safe cleaning of the surrounding environment.
The combination of quality materials, innovative solutions and attention to detail makes the BS6 and BS8 the ideal choice for urban sweeping and road maintenance and construction:
- The waste container is made entirely of stainless steel, as is the integrated water tank, which enables effective dust abatement, keeping the streets clean and reducing environmental impact.

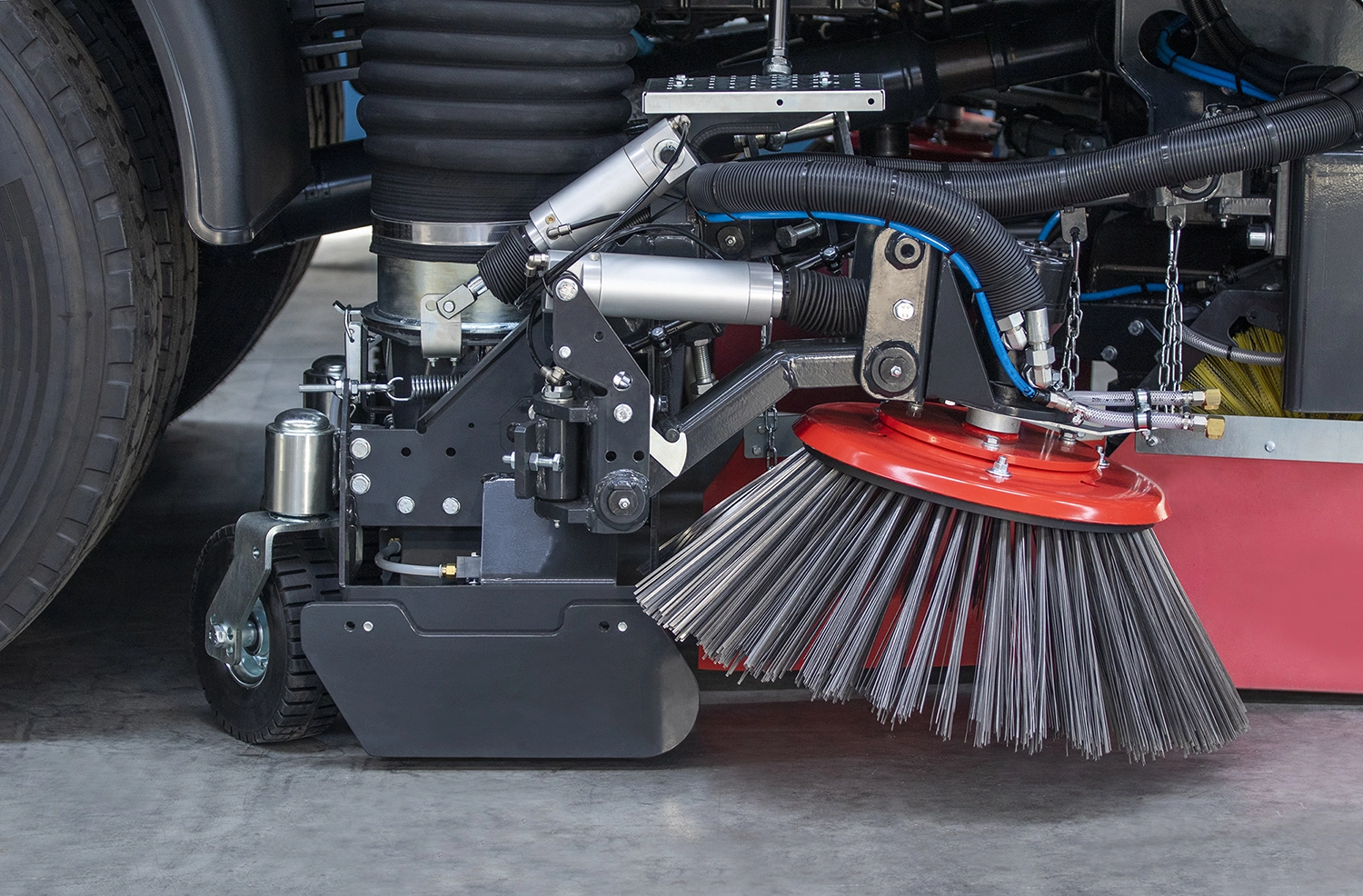

- The brushes, made of Ø 700 mm steel wires, are driven by an efficient hydraulic motor, and guarantee optimum cleaning even in the most critical situations.

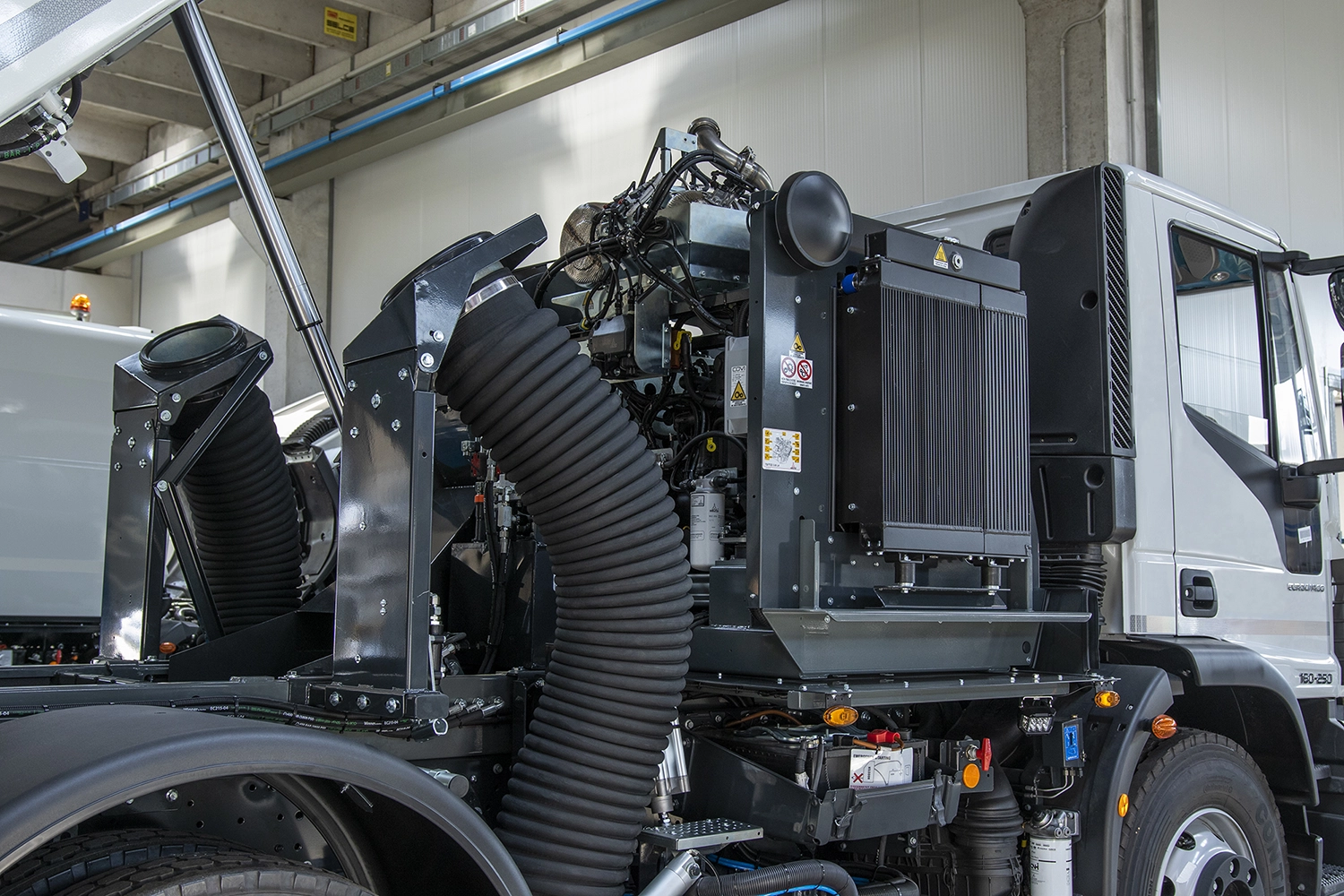

- The suction fan for extracting debris and dust is made of wear-resistant Hardox 400 steel. The variable speed between 1900 and 3300 rpm allows the performance to be adapted to different operational requirements.
- The suction nozzles, fixed on a trolley towed by super-elastic rubber wheels, are made of wear-resistant Hardox 400 steel to guarantee a longer life.
The open body has a mechanical anti-fall system with pneumatic control for release.
Main Features
Standard equipment
DEUTZ TCD 3.6 L4 Stage 5 auxiliary engine
Power 55 kW @2200 rpm Maximum torque 390 Nm @1300 rpm
Central brush with cylindrical roller Ø 400 mm made of PPL/Steel (OPT Nylon or Nylon/Steel version).
Length 1500 mm, Rotational speed 150 rpm
Water tank 2,200 l, stainless steel
integrated with waste container with internal breakwater
Optional
Simultaneous sweeping strip 3200 mm
Additional, rear-cabin, 2,000-litre stainless steel water tank
Auxiliary engine DEUTZ TCD 3.6 L4 Stage 5 Power 100 kW @2200 rpm Maximum torque 500 Nm @1600 rpm
Auxiliary engine FTP NEF 45 Stage 3 (non-emitting markets) Power 74 kW @2300 rpm Maximum torque 398 Nm @1400 rpm
1,2,3 Cameras with 7’ LCD monitor

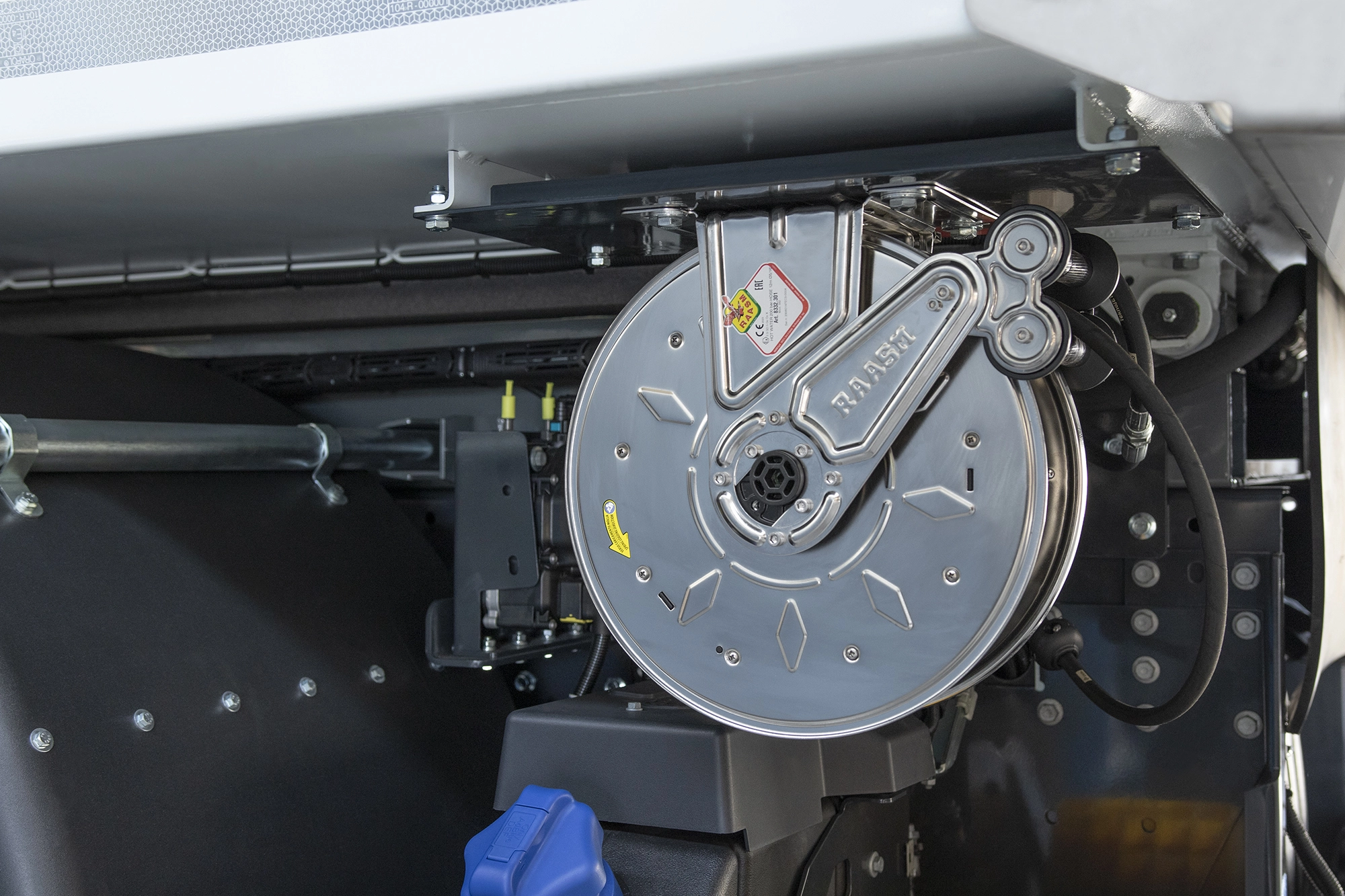

High pressure washing system 15 litres/150 bar complete with hand lance and 12 metre hose reel
80 litre/60 bar high pressure washing system complete with hand lance and 12 metre hose reel
200 mm diameter manual leaf vacuum hose with optional pneumatic support
Additional signal light system
Pressure brush for uneven floors and construction site areas
Model variations
| BS | VOLUME (m3) | LENGHT (mm) | WHEELBASE (mm) | GVM (ton) |
|---|---|---|---|---|
| BS6 | 7 | 6130 | 3105 | 15 |
| BS8 15 | 9 | 6720 | 3690 | 15 |
| BS8 18 | 9 | 6720 | 3690 | 18 |
