Viper
Vehicle with tipping tank for waste collection
- Outstanding agility and versatility even in tight spaces
- 7‘’ in-cab monitor with integrated camera
- Bin-Lifter-Tipper motion control with proportional technology
- Modular Bin-Lifter-Tipper structure
- Demountable comb with drawn steel guides and bushings

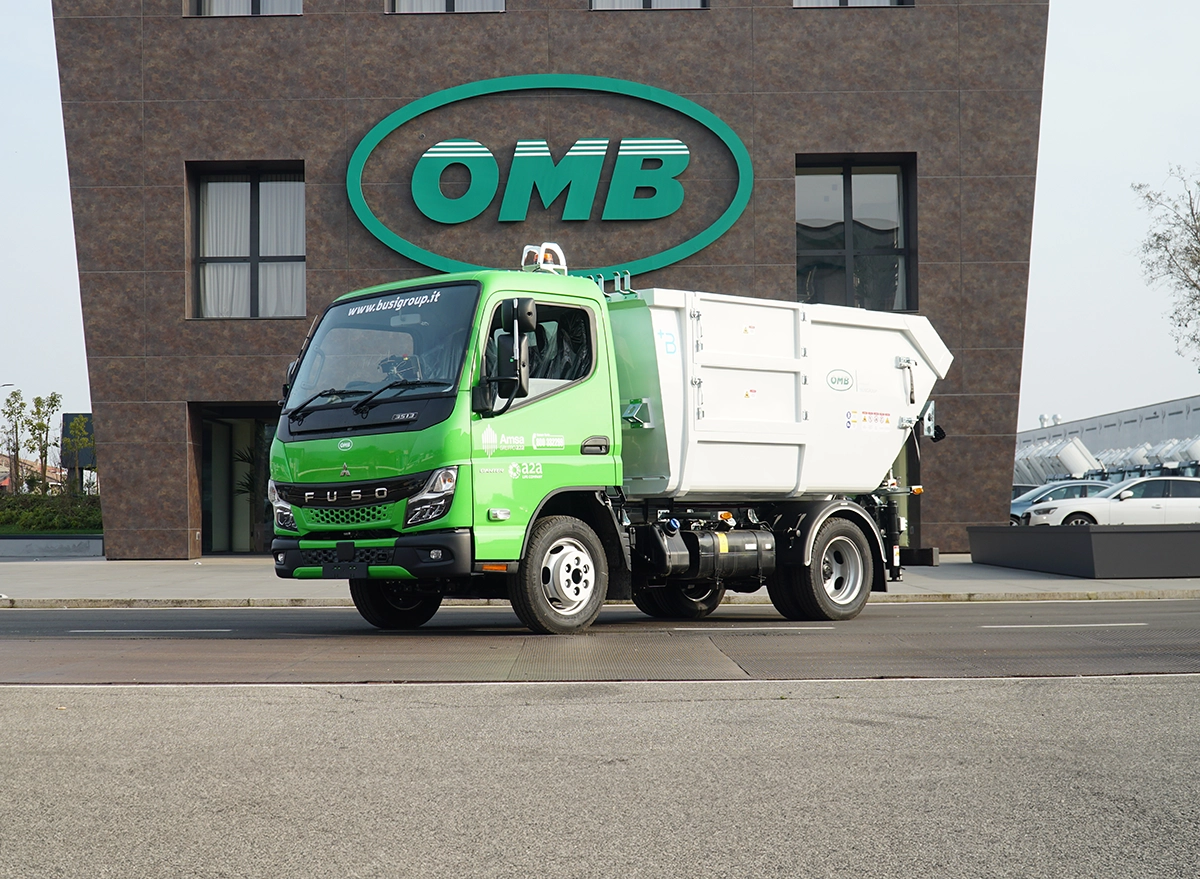

Viper is the vehicle in the OMB's range consisting of the rear tipping tank. It is the ideal solution for carrying out waste collection services in small municipalities or in the hard-to-reach streets of historic town centres, or even as a support vehicle for the ground handler thanks to the large side door that facilitates manual collection.

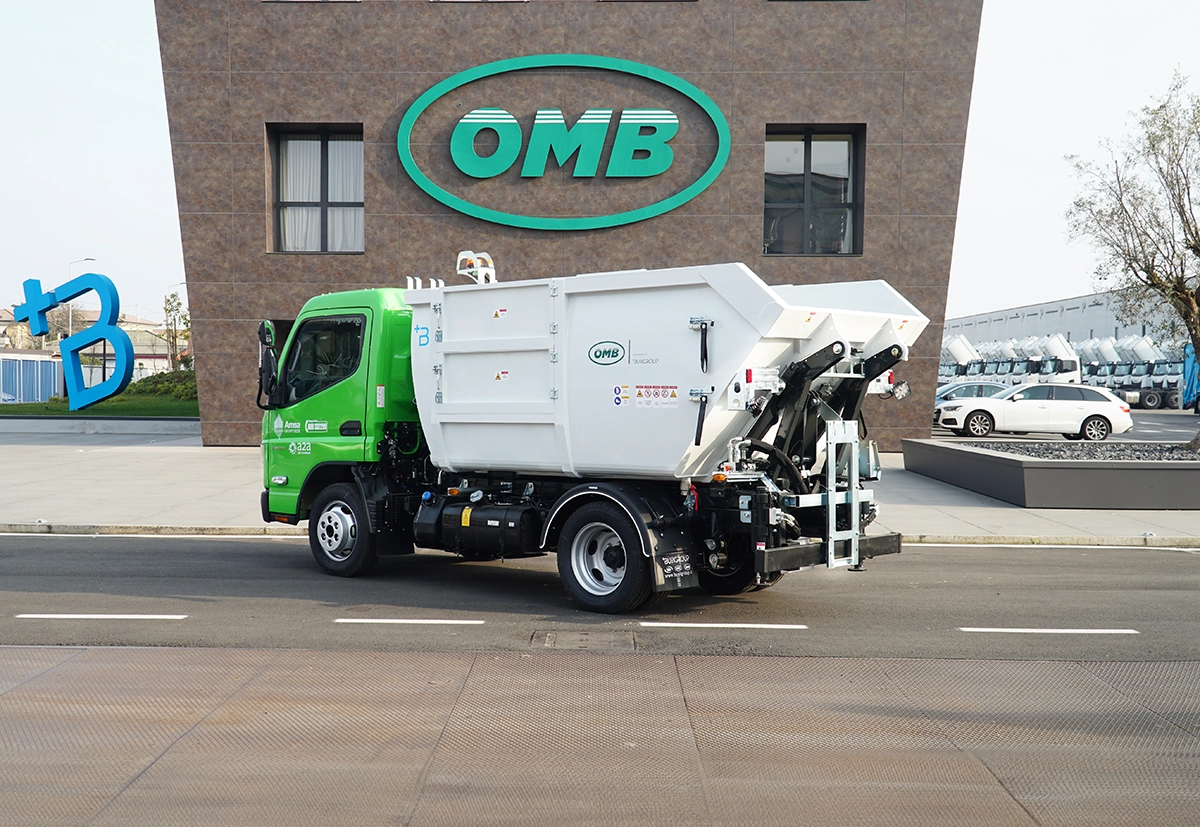

Viper is also available with a Bin Lifter - Tipper mechanism. The waste is unloaded by tipping and can be carried out directly at the point of delivery or inside medium/large-sized compactors or even in roll-off compactors.
The Viper system is technologically advanced:
- Equipped with a 7'' in-cab monitor with integrated camera for simple and intuitive diagnostics, communication with CAN-bus protocol.
- Movement of the Bin-Lifter-Tipper system is smooth thanks to proportional technology and the presence of an angular sensor for constant position monitoring.
- The comb is detachable and equipped with drawn steel guides and bushings to ensure high resistance to wear.
Main Features
Standard equipment
Side door
right-hand side
Rear camera
7’ colour monitor
In-cab tank tilting controls
No. 1 rear worklight
Shovel and broom holder
Stabilizers
Optional
Bin-Lifter-Tipper system
Operator footplates
Pre-hooking system
Additional gripping arms (non-DIN)
Sheet metal pocket (fixed or foldable)
Integrated Bin-Lifter-Tipper re-sealable PVC pocket
Stabilisers with cylinders
Stabilisers with ground stabiliser control
Emergency hand pump
Side hatch on left side
Additional left-side control panel
Bin disinfection system
Model variations
| VIPER | VOLUME (m3) | LENGHT (mm) |
|---|---|---|
| Viper 5 | 5 | 3450 |
| Viper 7 | 7 | 3800 |
