Quick

The single-body compactor that is the wild card for collection services

Quick Quick Quick Quick Quick Quick

Extremely versatile and practical
3 vehicles in 1
Subdivided rear tailgate
Safety sensor for hand collection
Rapid compaction cycle (12 sec)
Proportional distributor for Bin-Lifter-Tipper system
Pre-hooking
45° manually foldable platform

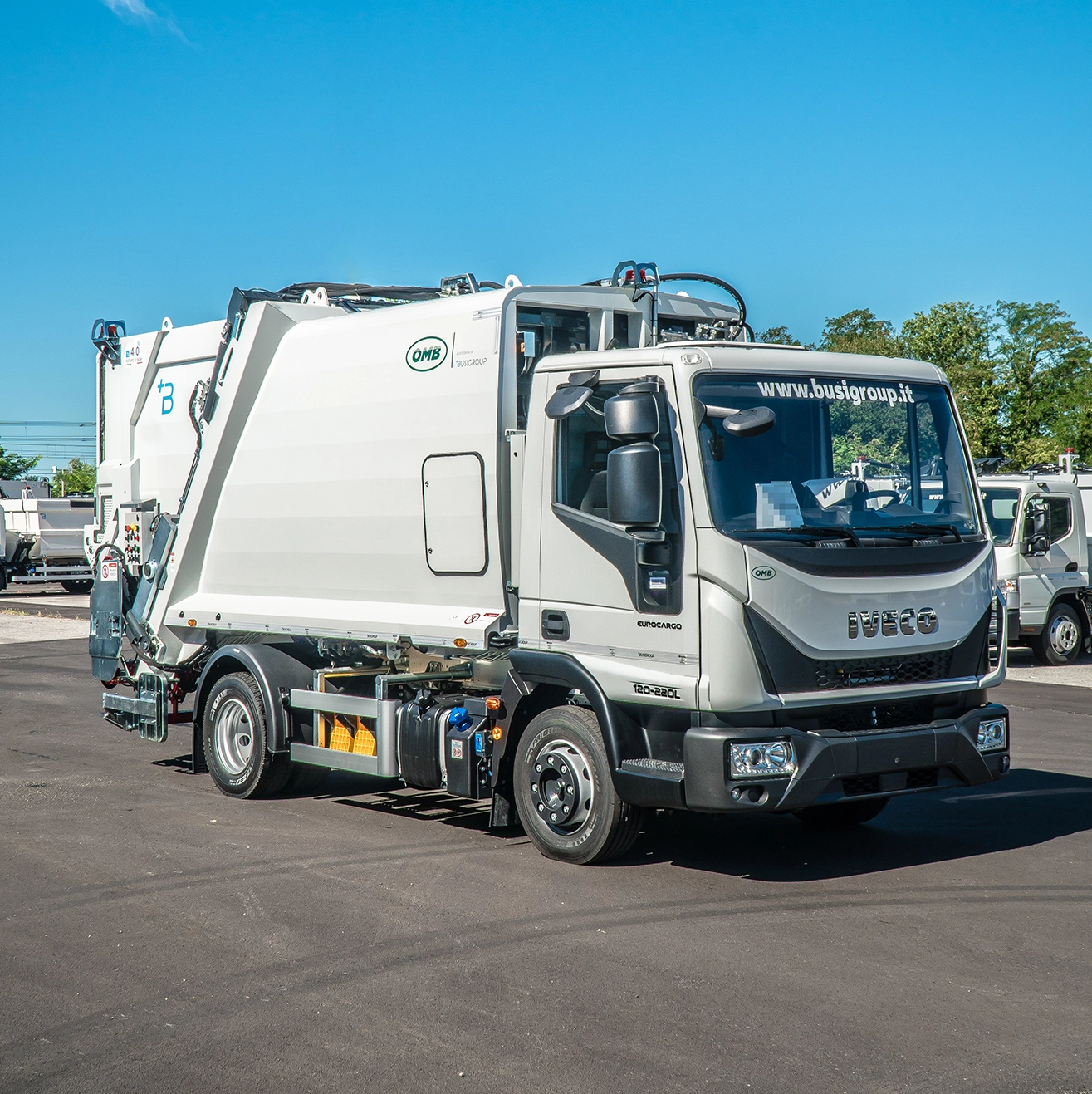

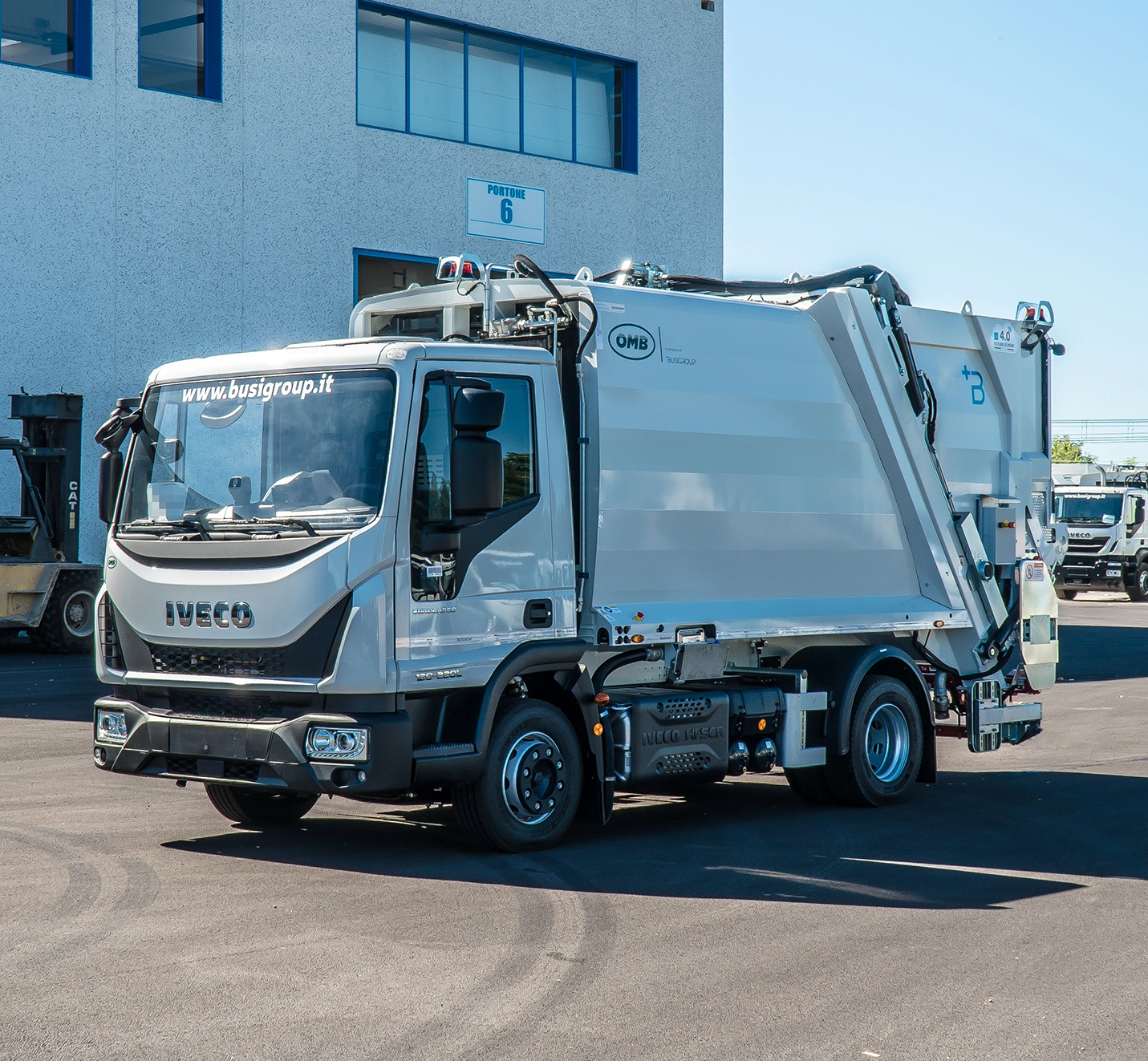

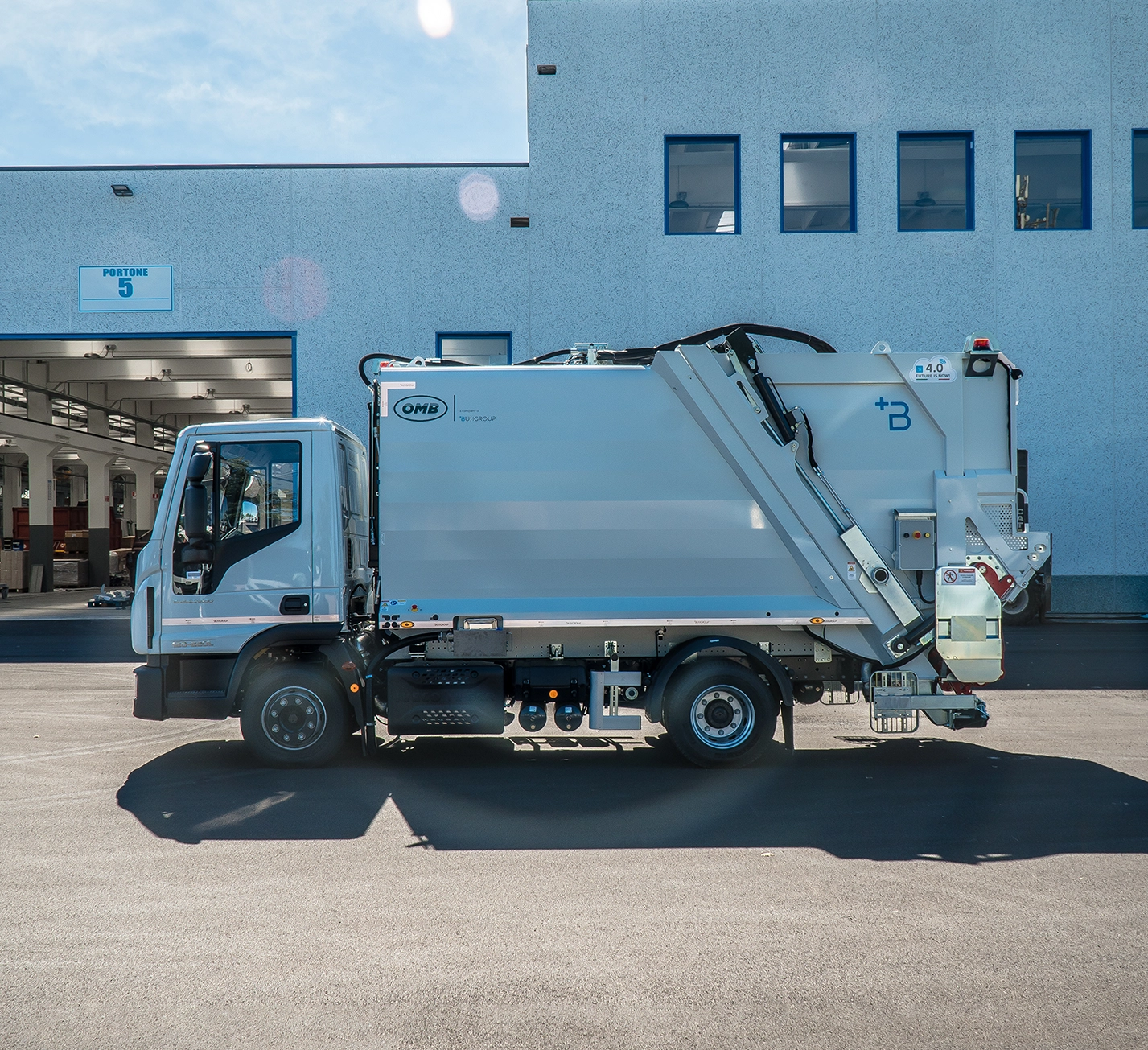

Quick is a rear-loading compactor with a single-axle design that is an extremely versatile solution for a wide range of waste collection needs: in active service it is agile and efficient thanks to its compact dimensions, but it can also receive waste from other vehicles and deliver waste into larger vehicles - in fact, it is like having three vehicles in one!

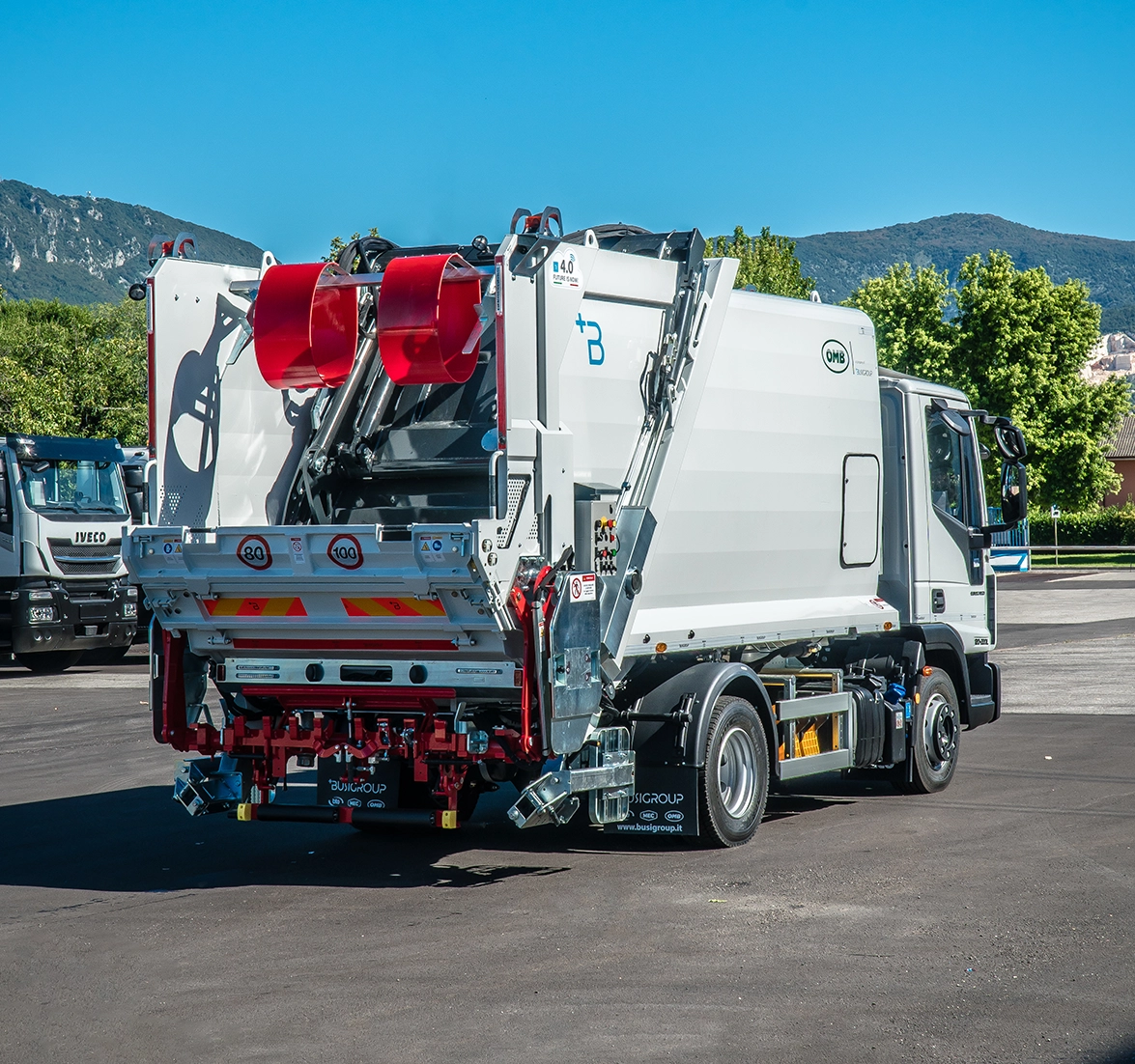

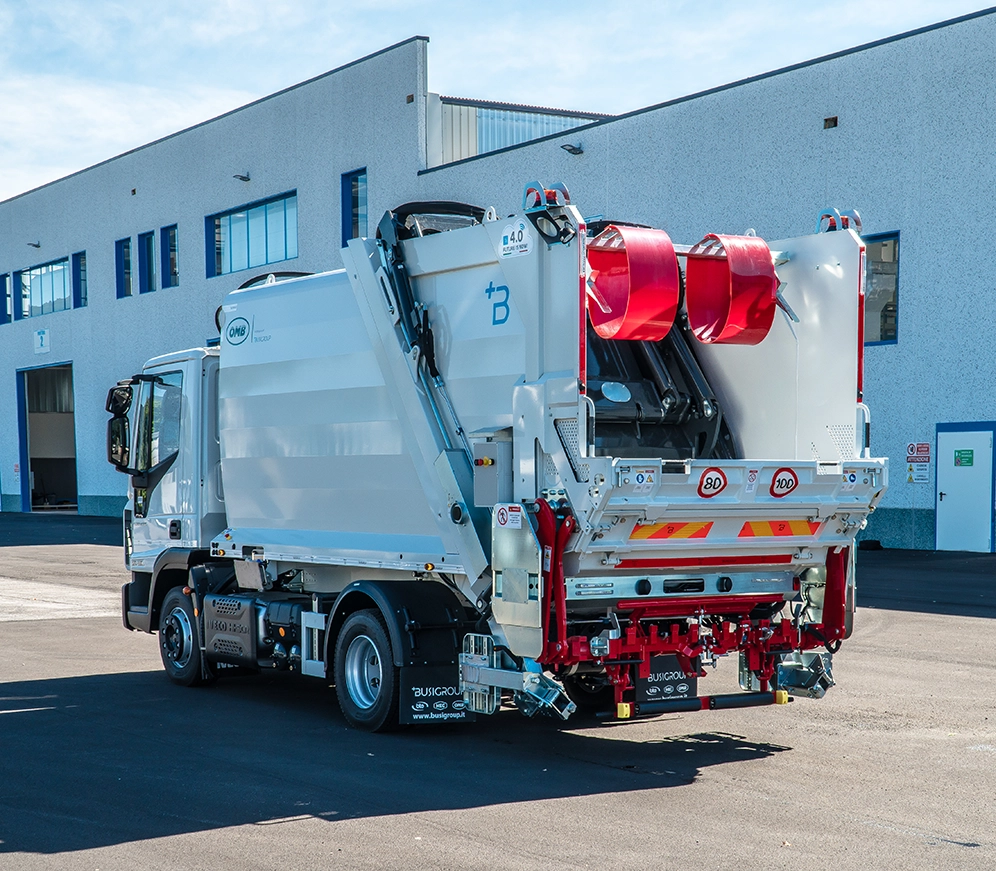

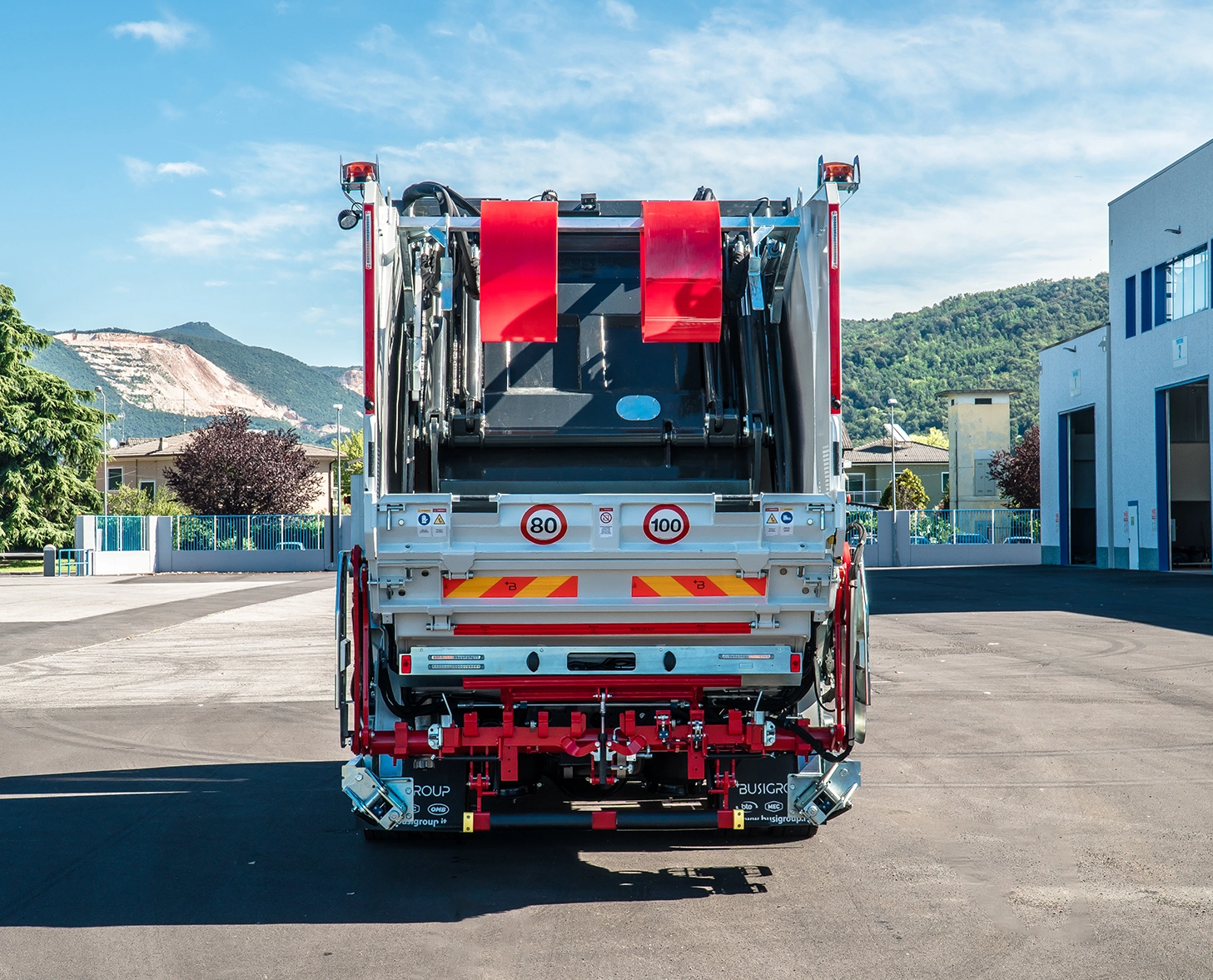

The rear tailgate is divided into two parts, of which the upper one is made of light alloy and has a simplified opening, facilitating manual bag loading operations; an infrared safety system allows the continuous automatic compaction cycle.
The internal width of the loading opening of 1900 mm allows maximum versatility when pairing with other vehicles.
The blade cylinders have upward-pointing rods to safeguard them from contact with the waste and the compacting cycle is rapid (12 sec.)
The Bin-Lifter-Tipper cycle is equipped with a proportional oil distributor to rationalise acceleration ramps during bin handling in order to improve emptying times and preserve bin integrity over time
The manual Bin-Lifter-Tipper system is equipped with an automatic bin pre-attachment system with a specific bin gripping system.
The operator platform can be folded manually at 45° to leave the area free for manoeuvring and pairing with other vehicles
