T-REX
The agile, high-tech compactor vehicle for waste collection
- Agile and capacious
- 7‘’ in-cab monitor with integrated camera
- Smooth Bin-Lifter-Tipper motion control with proportional technology
- Modular Bin-Lifter-Tipper structure
- Demountable comb with drawn steel guides and bushings

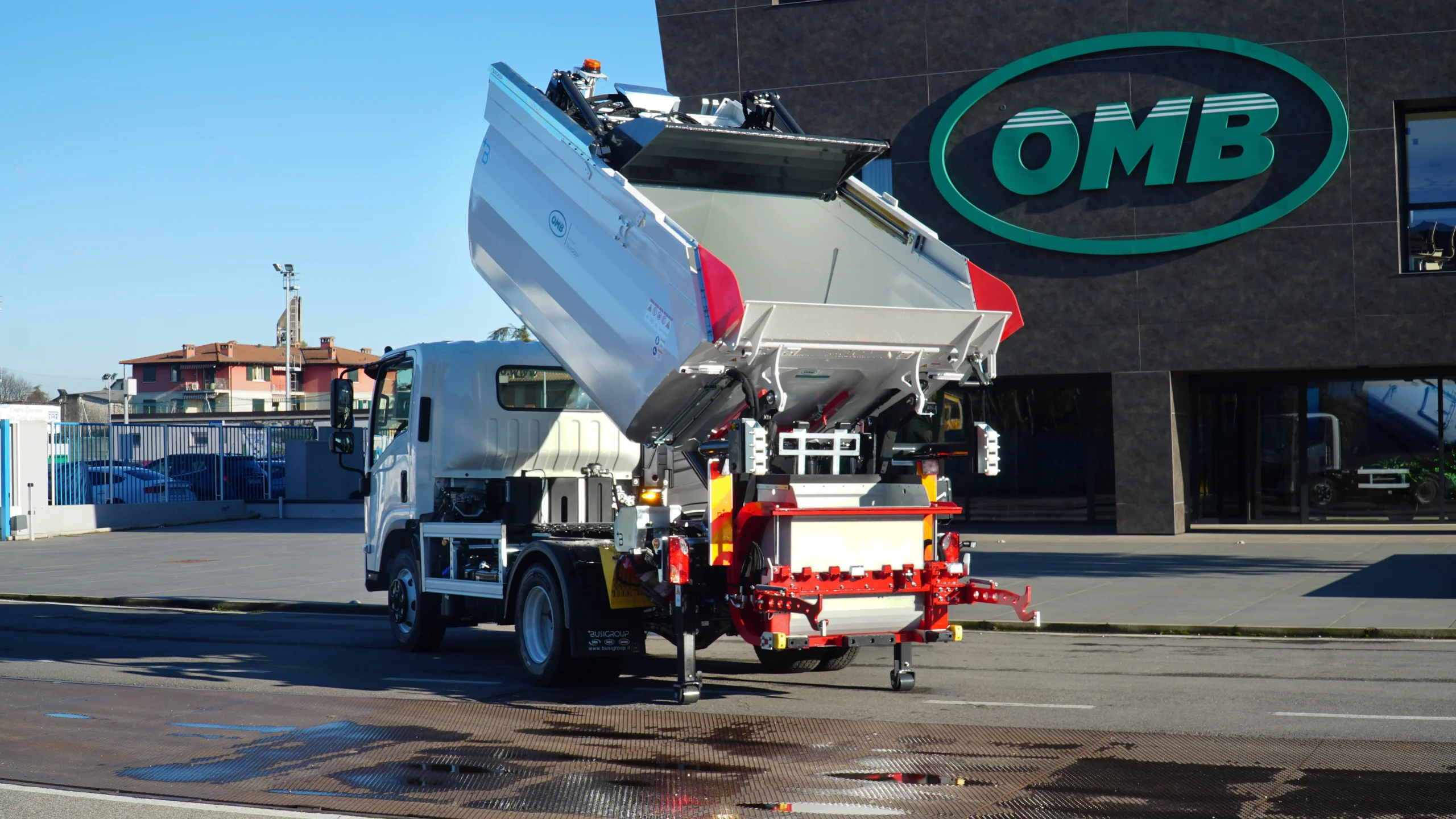

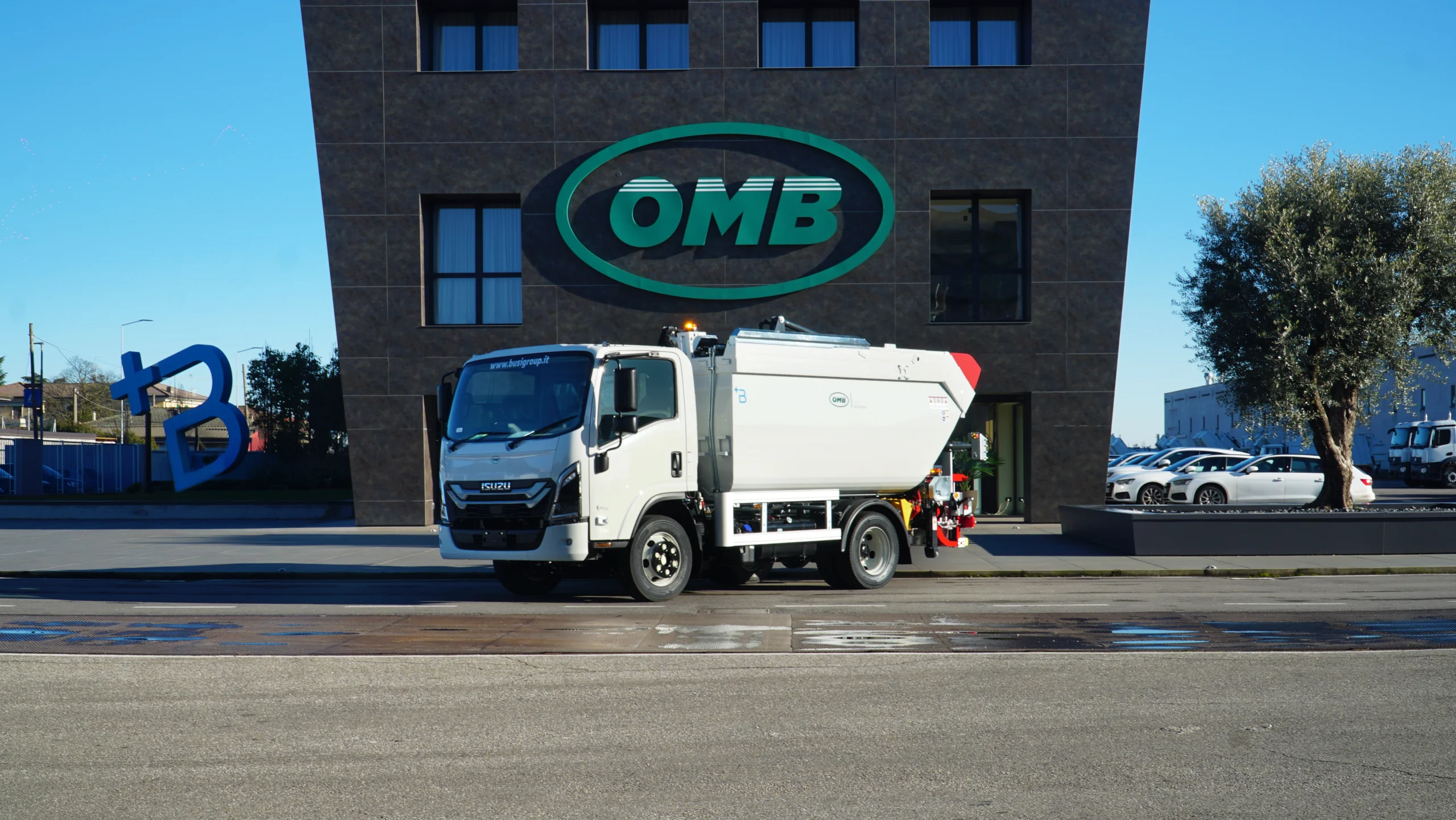

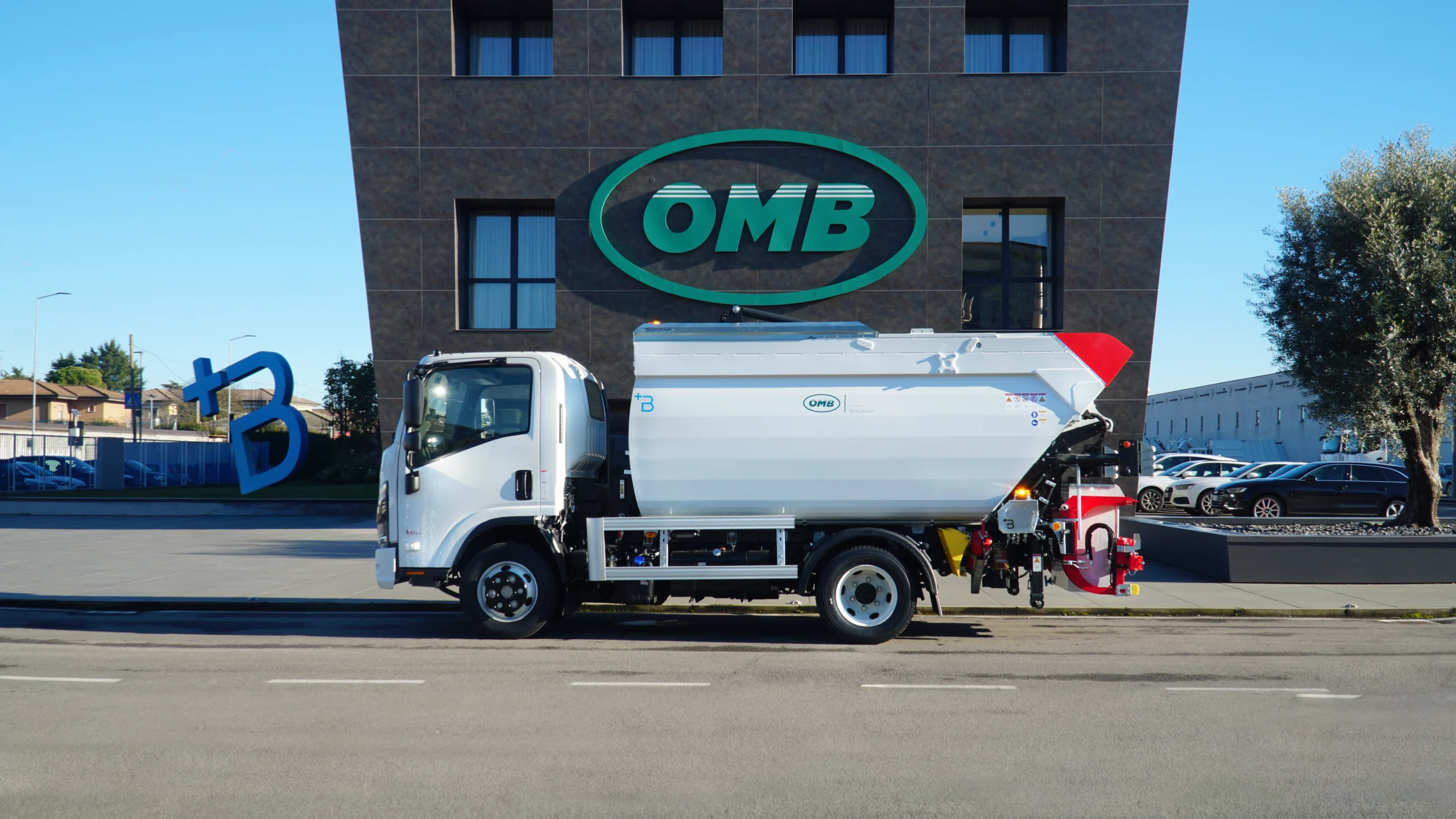

T-Rex is the solution for the collection and compaction of urban waste, consisting of a rear tipping tank equipped with a sledge compactor and a container lifting mechanism. The system is set up on small chassis, perfect for ‘door-to-door’ waste collection in small municipalities, historic town centres, mountain resorts and large cities.
- Manual dumping is simplified by the presence of a side door, supplied as standard with a safety mechanism, whereby opening the door inhibits the operation of the compacting sledge.
- The waste is unloaded by tipping and can be carried out directly at the transfer point or inside medium/large-sized compactors or roll-off compactors.

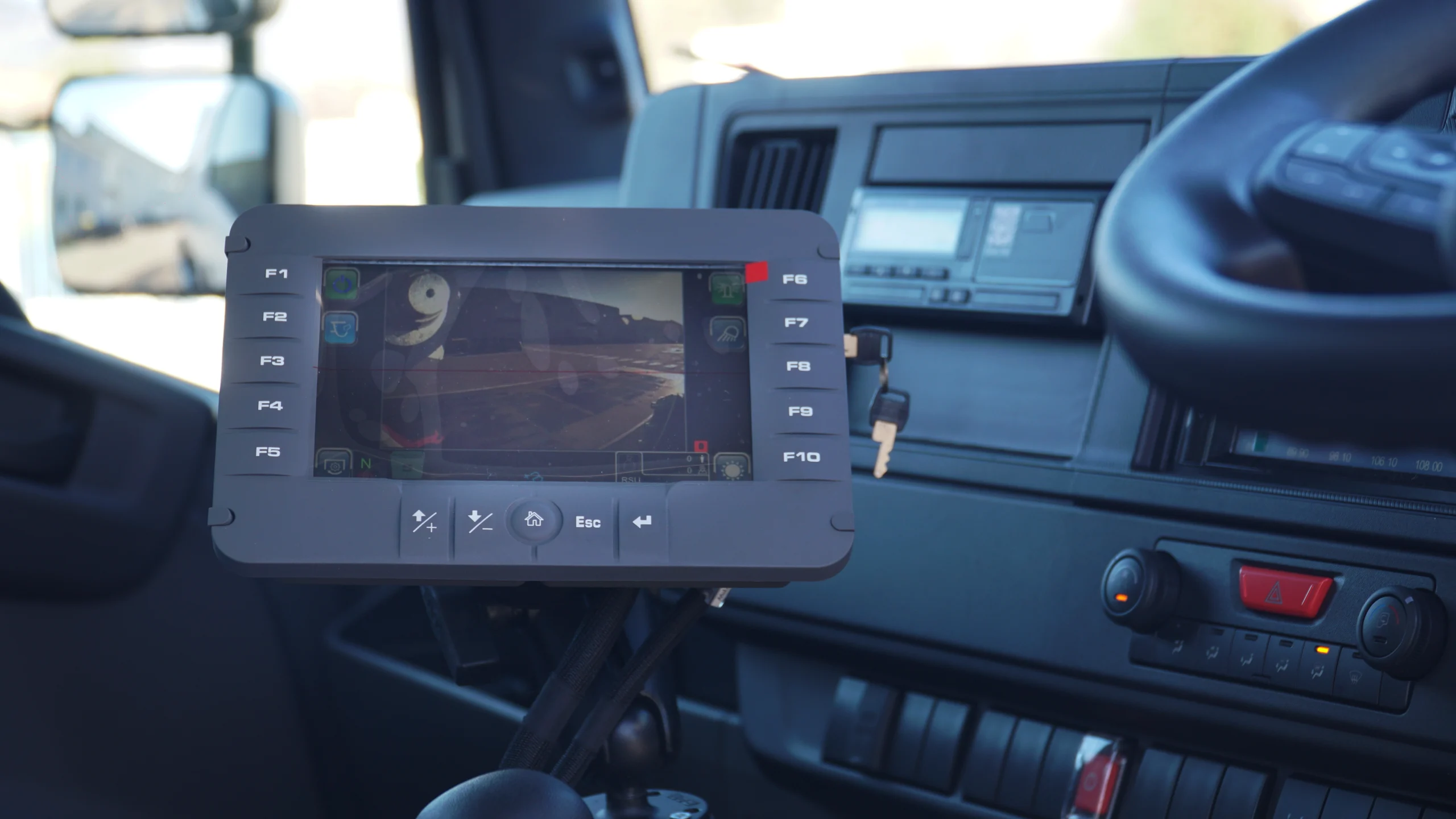

- The T-Rex system is technologically advanced: equipped with a 7‘’ monitor in the cab with integrated camera for simple and intuitive diagnostics, communication with CAN-bus protocol.

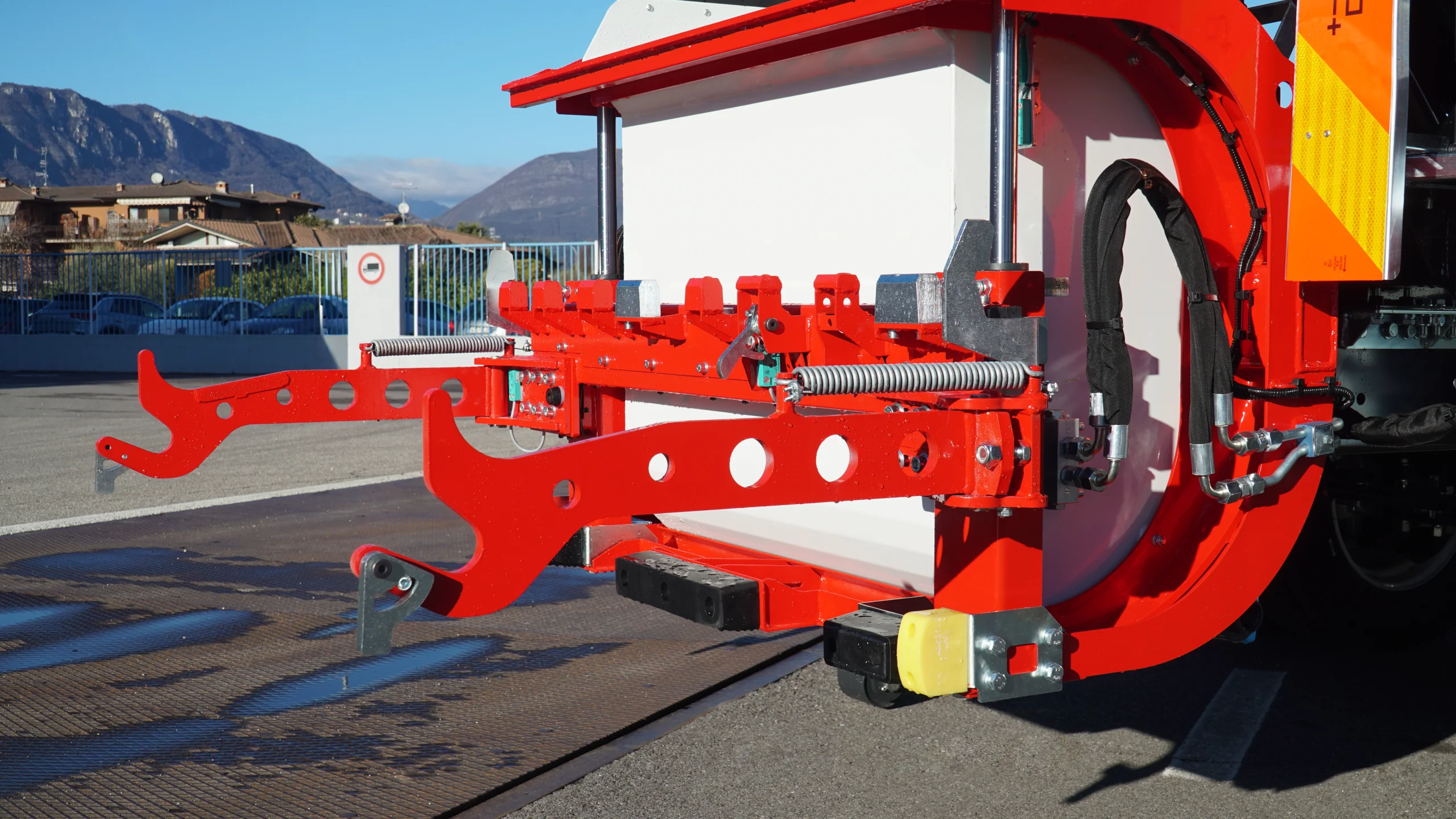

- Movement of the Bin-Lifter-Tipper system is smooth thanks to proportional technology and the presence of an angular sensor for constant position control.
- The comb is detachable and equipped with drawn steel guides and bushings to ensure high resistance to wear.
Main Features
Standard equipment
Side hatch
right-hand side
Rear camera
7’ colour monitor
In-cab tank tilting controls

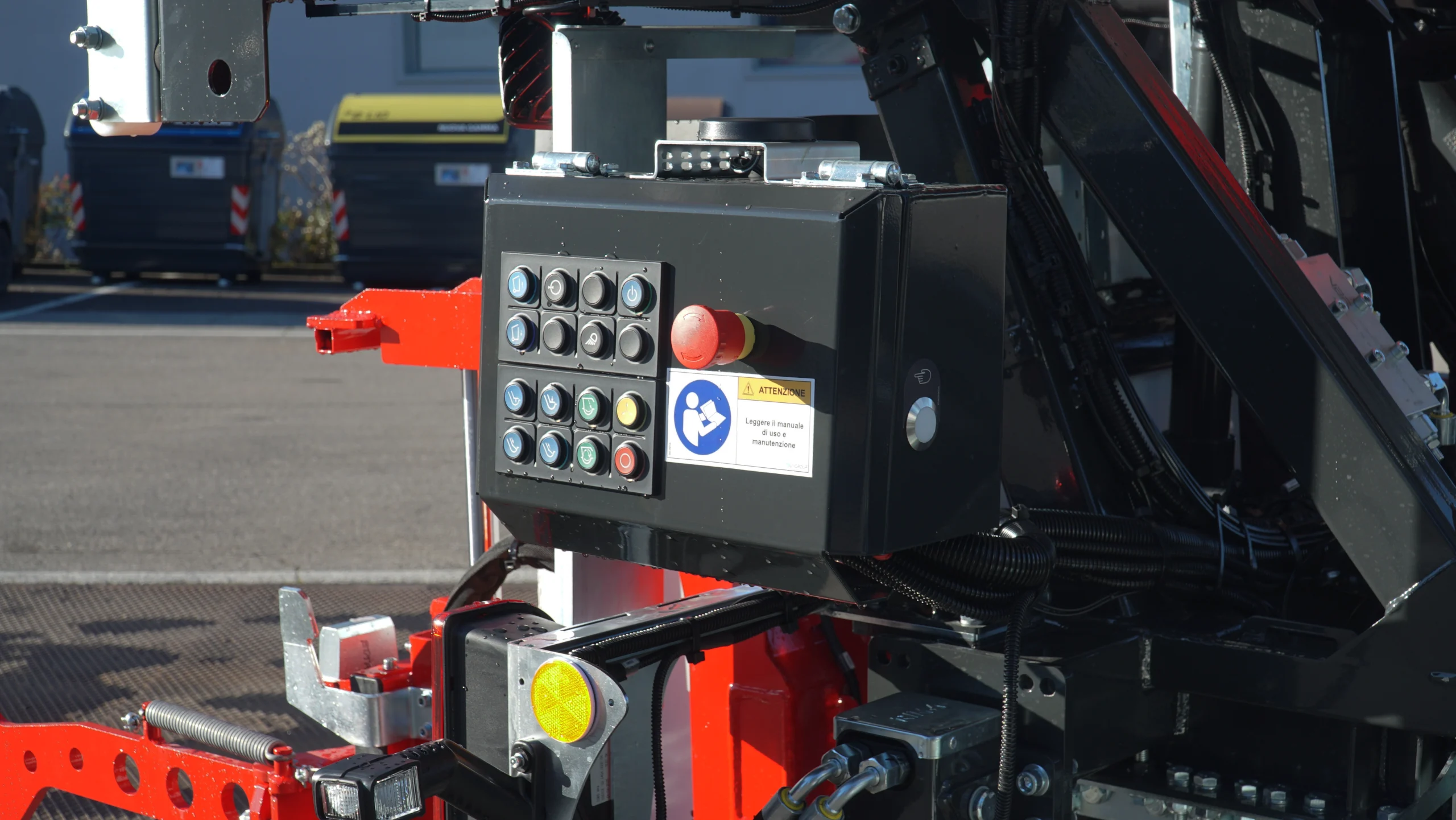

External AVC controls
No. 1 rear worklight
Shovel and broom holder
Stabilisers with plate
Optional
Operator platforms
Pre-hooking
Additional gripping arms (non-DIN)
Pouch in sheet metal (fixed or foldable)
Integrated Bin-Lifter-Tipper re-sealable pouch in PVC
Stabilisers with cylinders
Stabilisers with support control
Emergency hand pump
Side hatch on left side
Additional control panel on left side
Bin disinfection system
Model variations
| T-REX | VOLUME (m3) | LENGHT (mm) |
|---|---|---|
| T-REX 5 | 5 | 3420 |
| T-REX 7 | 7 | 4050 |
