Hooklift
KT
The hooklift equipment with a rack that allows a smaller vertical footprint
- Easy container roll-on

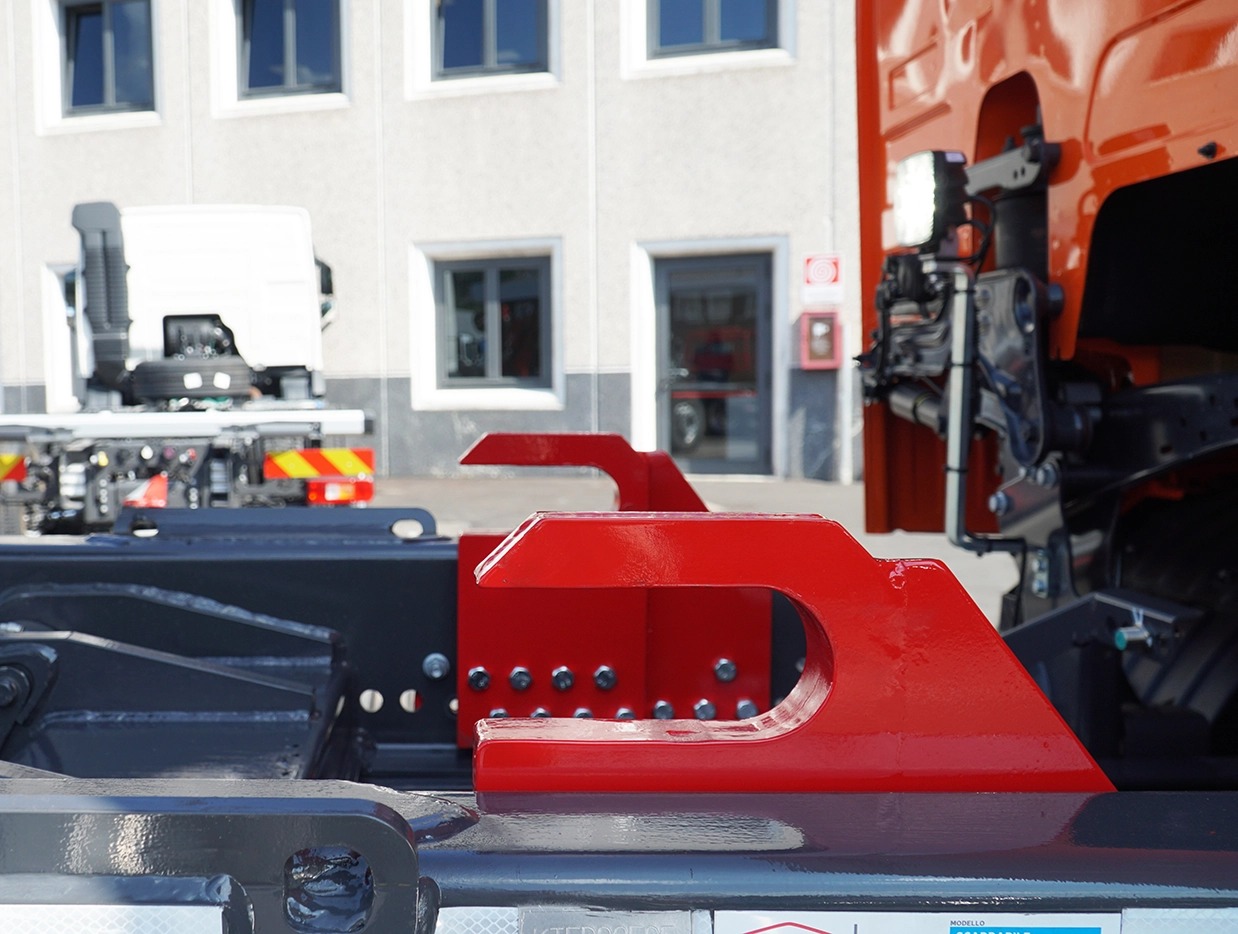

- Reinforced and liftable rear rack
- Increased tilting angle
- Lowered loading platform (180 mm) up to 20 ton models
MEC's KT range of hooklift equipment is characterised by a lifting rear frame that facilitates the loading of the container.

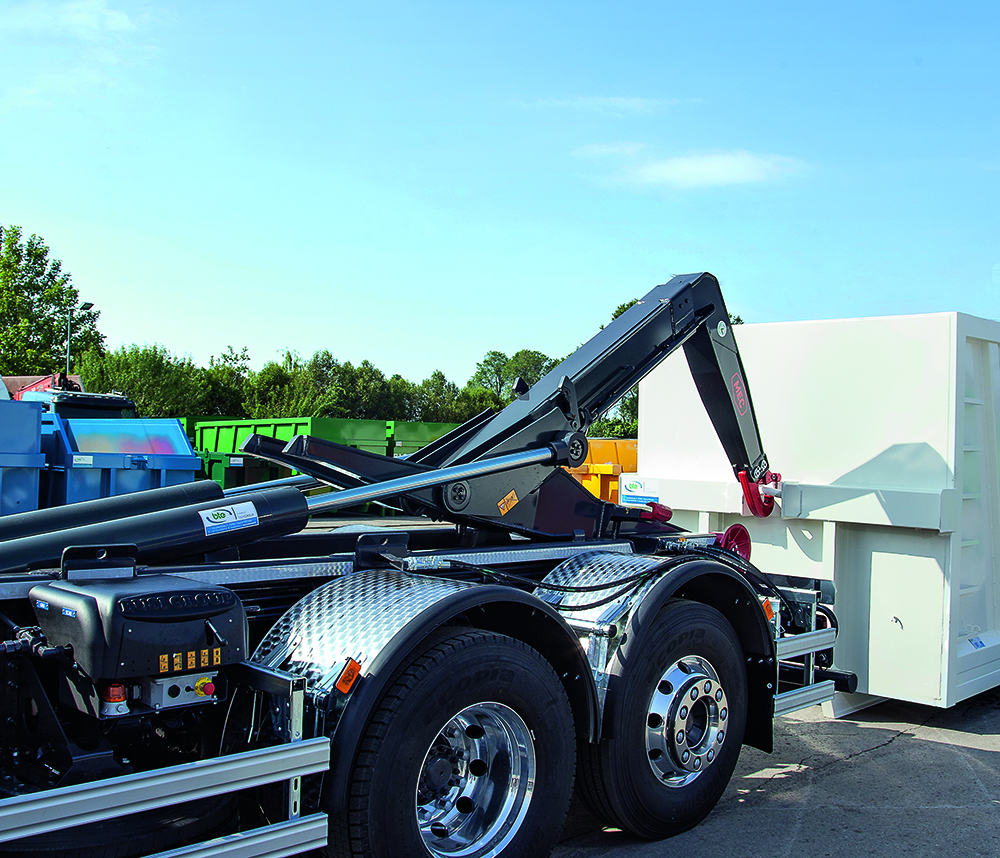

The KT FBS models are equipped with a pivoting arm (articulated arm) to improve the container roll-on/roll-off processes: the articlulated arm allows a better loading angle of the roll-off container and therefore less space required in height during the lifting phase. It is therefore useful for loading roll-off containers that are on a lower level than the vehicle or in closed environments or with limited manoeuvring space.
The articulated arm also makes it possible to handle a greater range of container lengths and with roll-off trailers.
Main Features
Optional
Possibility of container crane use
Possibility of connection with roll-off vehicles for the management of auxiliary services
Additional front locks
Regenerative system to speed up the tipping phase with empty containers
Camera with in-cab monitor
Radiatore di raffreddamento
Model variations
| KT | Load capacity max. (ton) | Suggested Container (mm) | Tipping angle (°) | Articulated arm |
|---|---|---|---|---|
| KT 005 | 5 | 2800 - 4800 | 67 - 63 | no |
| KT 006 | 6 | 2800 - 4800 | 60 - 63 | no |
| KT 008 | 8 | 3000 - 5200 | 56 - 60 | no |
| KT FBS 008 | 8 | 2600 - 4800 | 57 - 59 | yes |
| KT 010 | 10 | 3000 - 5200 | 56 - 60 | no |
| KT FBS 010 | 10 | 2600 - 4900 | 57 - 59 | yes |
| KT 012 | 12 | 3600 - 5800 | 56 - 54 | no |
| KT FBS 012 | 12 | 2600 - 4900 | 57 - 59 | yes |
| KT 014 | 14 | 3400 - 6200 | 52 - 58 | no |
| KT FBS 014 | 14 | 2900 - 6200 | 54 - 58 | yes |
| KT 016 | 16 | 3400 - 6200 | 52 - 58 | no |
| KT FBS 016 | 16 | 2900 - 6200 | 54 - 58 | yes |
| KT 030/6 | 30 | 4300 - 6400 | 52 | no |
| KT FBS 030/6 | 30 | 3600 - 6800 | 52 | yes |
| KT 030/7 | 30 | 5200 -7400 | 52 | no |
| KT FBS 030/7 | 30 | 4500 - 7500 | 51 | yes |
| KT FBS 030 | 30 | 3600 - 7500 | 51 - 52 | yes |
| KT 035 | 35 | 5200 - 7400 | 52 | no |
| KT FBS 035/6 | 35 | 3600 - 6800 | 52 | yes |
| KT FBS 035/7 | 35 | 4500 - 7500 | 51 | yes |
