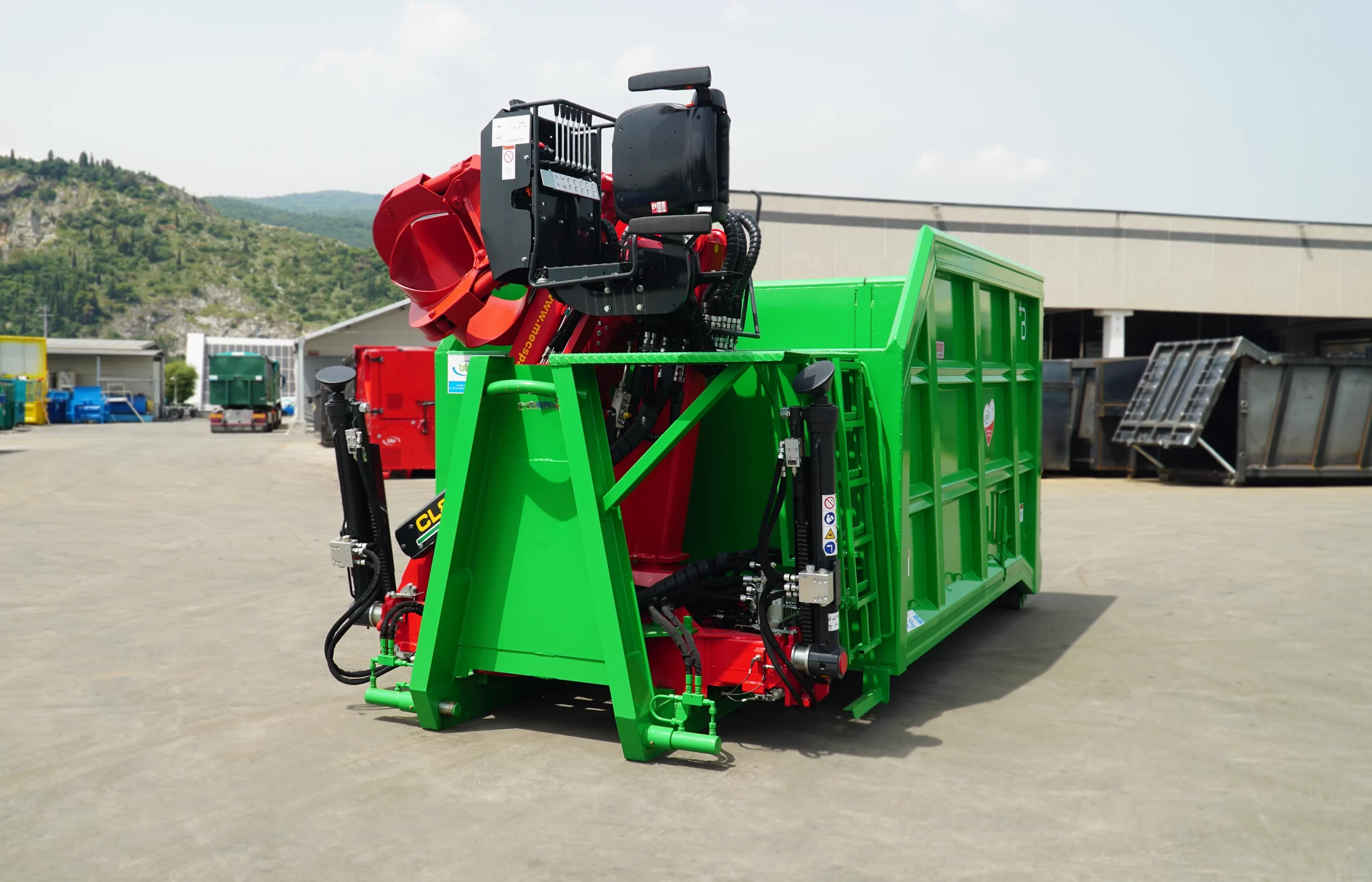

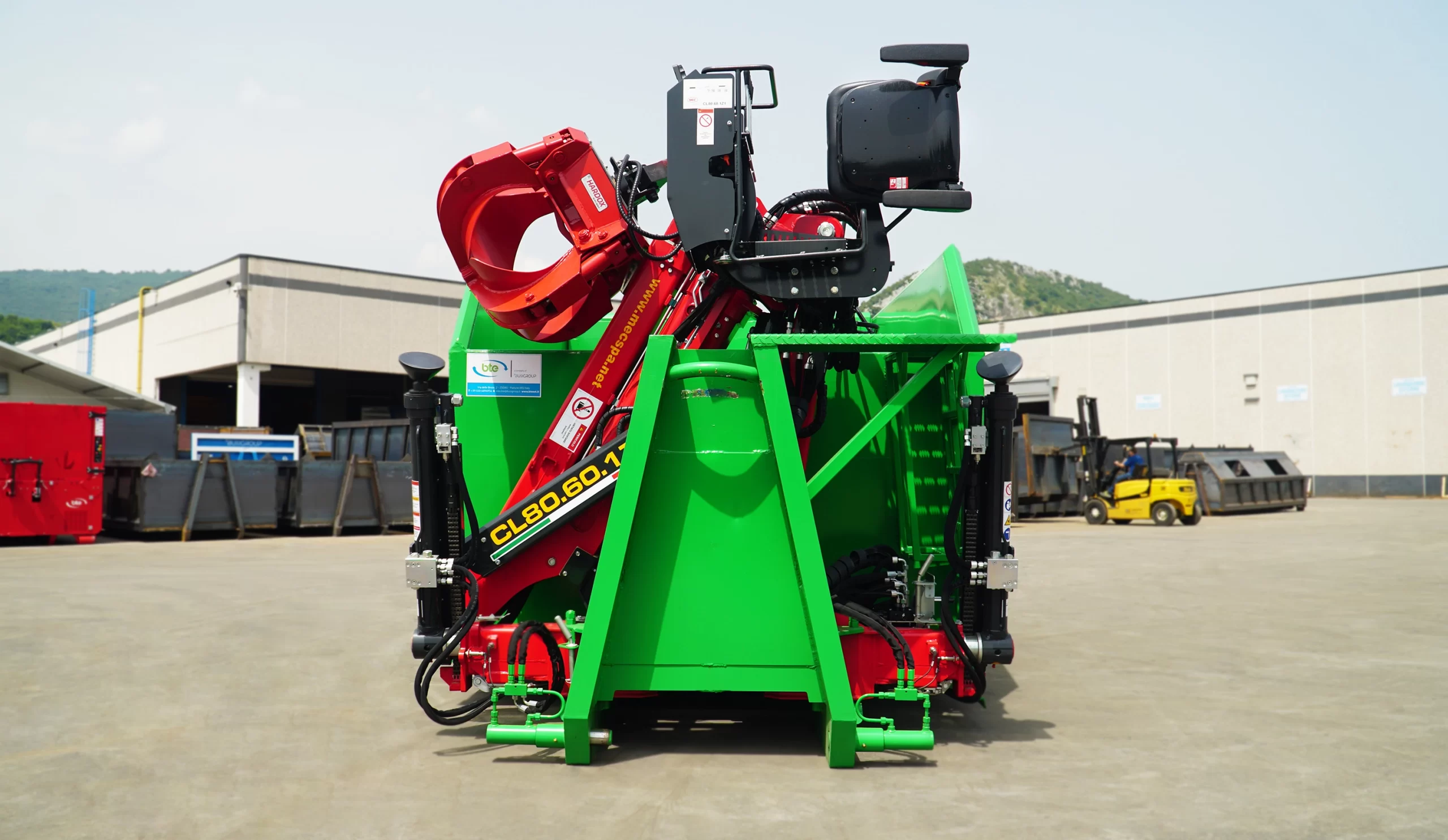

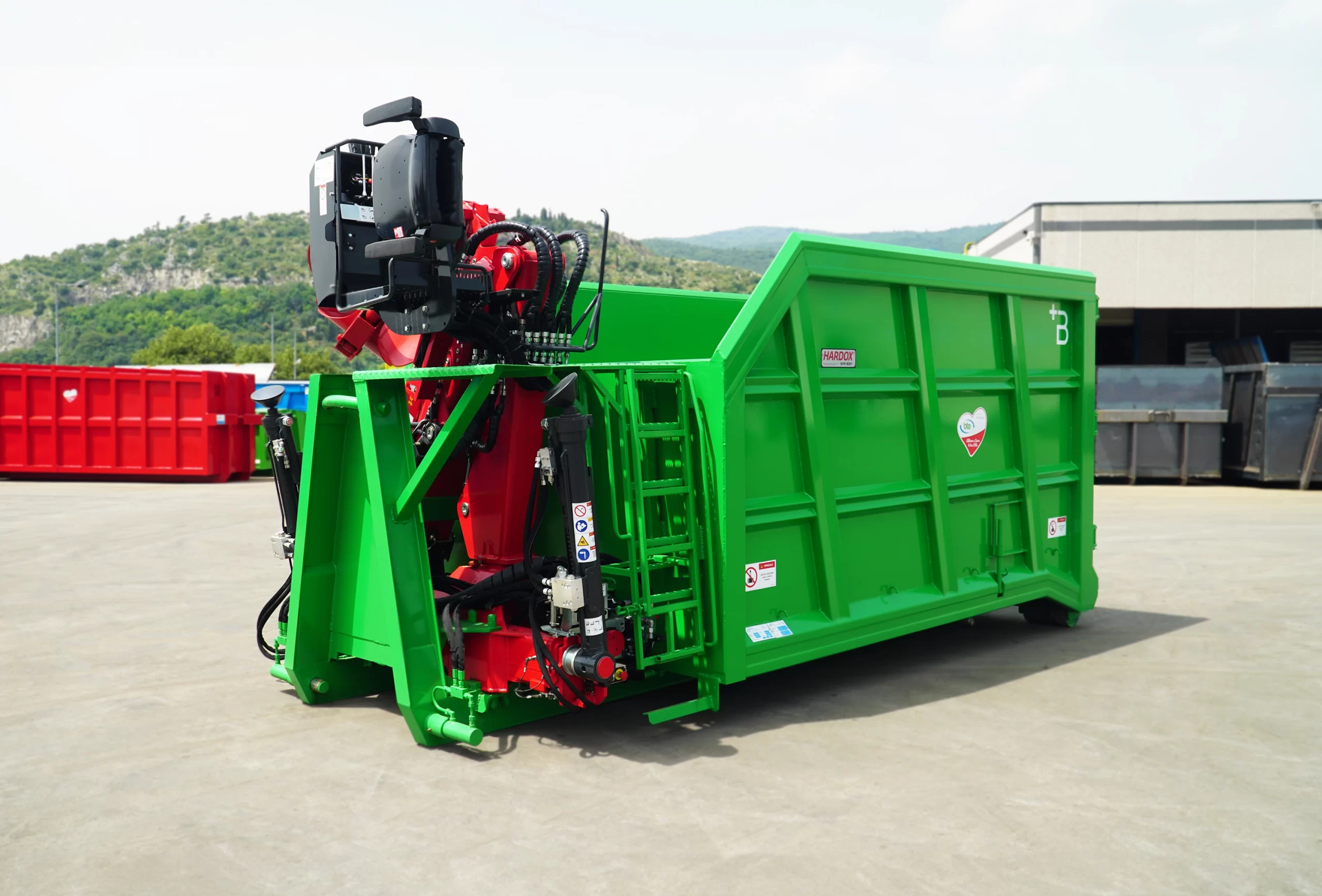

Crane Equipment Container
The roll-off container for loader/crane set-up
- Chamfer / front bevel for seat passage
- Reinforced front structure for crane/loader mounting
- Strong and robust, designed to last
- Main materials of construction: S235 / S275 / S355 / HARDOX / AISI 304 / AISI 316
- Wide range of standard sizes
- Various options available
- Fully customised colours and graphics
BTE roll-on roll-off containers are perfect for outfitting with loaders and cranes.
The quality of construction is guaranteed by the technologically advanced production process: the containers are assembled with forming jigs and finished with robot-assisted continuous wire welding.
The containers are customisable in terms of size, finish and options.
Main materials of construction: S235 / S275 / S355 / HARDOX / AISI 304 / AISI 316Fully customised colours and graphics
Main Features
Standard equipment
Available standard lengths (mm)
4600, 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400
Available standard widths (mm)
2000, 2200, 2300, 2500, 2550
Standard internal heights available (mm)
500, 750, 1000, 1250, 1500, 1600, 1800, 2000, 2200, 2400
Hook heights (mm)
1460, 920, 1425, 1570, 1570 norma DIN 30722
Support structure
cylinders or pads
Colour and Labels
customised
Reinforced front structure for crane/loader mounting
Chamfer / front bevel for seat passage
Clamping cylinders for frame plates
Moulded reinforcements
Tailgate with reinforced closure
side release specifically for cranes
Optional
reinforced bottom
Hardox
Leakproof
Leakage valves for liquids
Special varnishes: food safe, epoxy, saline environment
Reinforcement rib on side rails (single or double)
Ladder (internal/external)
