CNTTR with blade Container
The roll-off container with ejection blade for stationary presses
- Strong and robust, designed to last
- Main materials of construction: S235 / S275 / S355 / HARDOX / AISI 304 / AISI 316
- Wide range of standard sizes
- Various options available
- Fully customised colours and graphics

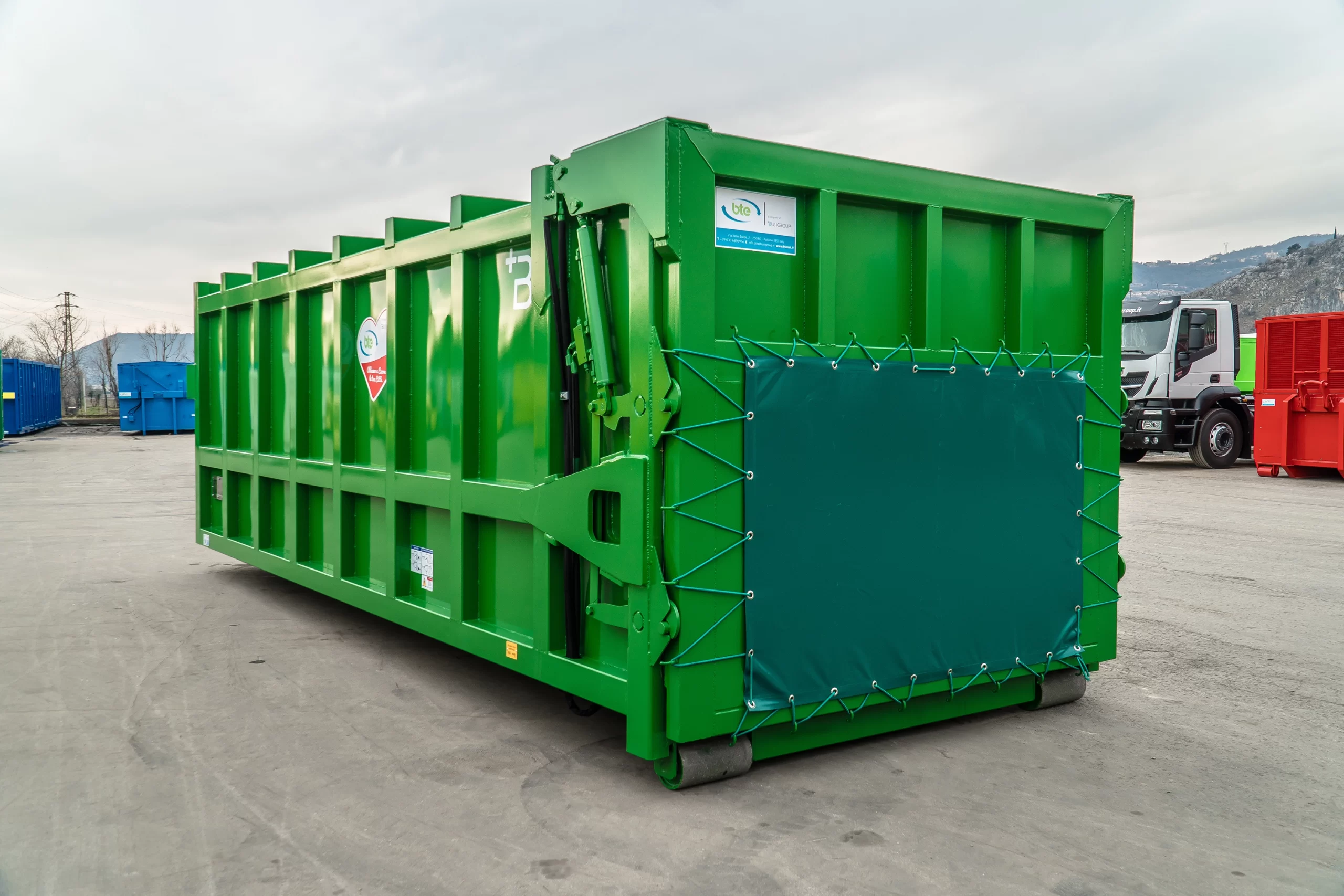

BTE CNTTR, rectangular parallelepiped body and the full strok ejection blade.
The full-stroke ejection blade is particularly useful when dealing with materials that are difficult to extract or in situations where traditional unloading (by tipping and gravity) cannot be performed, for example due to space constraints.
The quality of the construction is guaranteed by the technologically advanced production process: the containers are assembled with forming jigs and finished with robot wire welding.
The containers are customisable in terms of size, finish and options.
Main materials of construction: S235 / S275 / S355 / HARDOX / AISI 304 / AISI 316
Main Features
Standard equipment
Available standard lengths (mm)
3000, 3200, 3400, 3600, 3800, 4000, 4200, 4400, 4600, 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400
Available standard widths (mm)
2000, 2200, 2300, 2500, 2550
Standard internal heights available (mm)
500, 750, 1000, 1250, 1500, 1600, 1800, 2000, 2200, 2400
Hook heights (mm)
1460, 920, 1425, 1570, 1570 norma DIN 30722
Support structure
cylinders or pads
Colour and Labels
customised
Optional
Reinforced bottom
Hardox
Leakproof
Leakage valves for liquids
Special varnishes: food safe, epoxy, saline environment
Ladder (internal/external)
Reinforced front structure for crane/loader mounting
Reinforcement band on side rails (single or double)
Ventilation windows
Gridded bottom or walls
