CMPL 8
The most advanced side waste collection system
- Operational even close to walls
- Bin tilting up to 60°.
- Sewage collection tank in stainless steel
- Hopper volume >7 m3
- Capacitive joystick control
- 12’ colour monitor
- Simultaneous viewing of 4 cameras
- Compensated proportional distributor for smooth gripping unit movements
- Grip with visual feedback on monitor

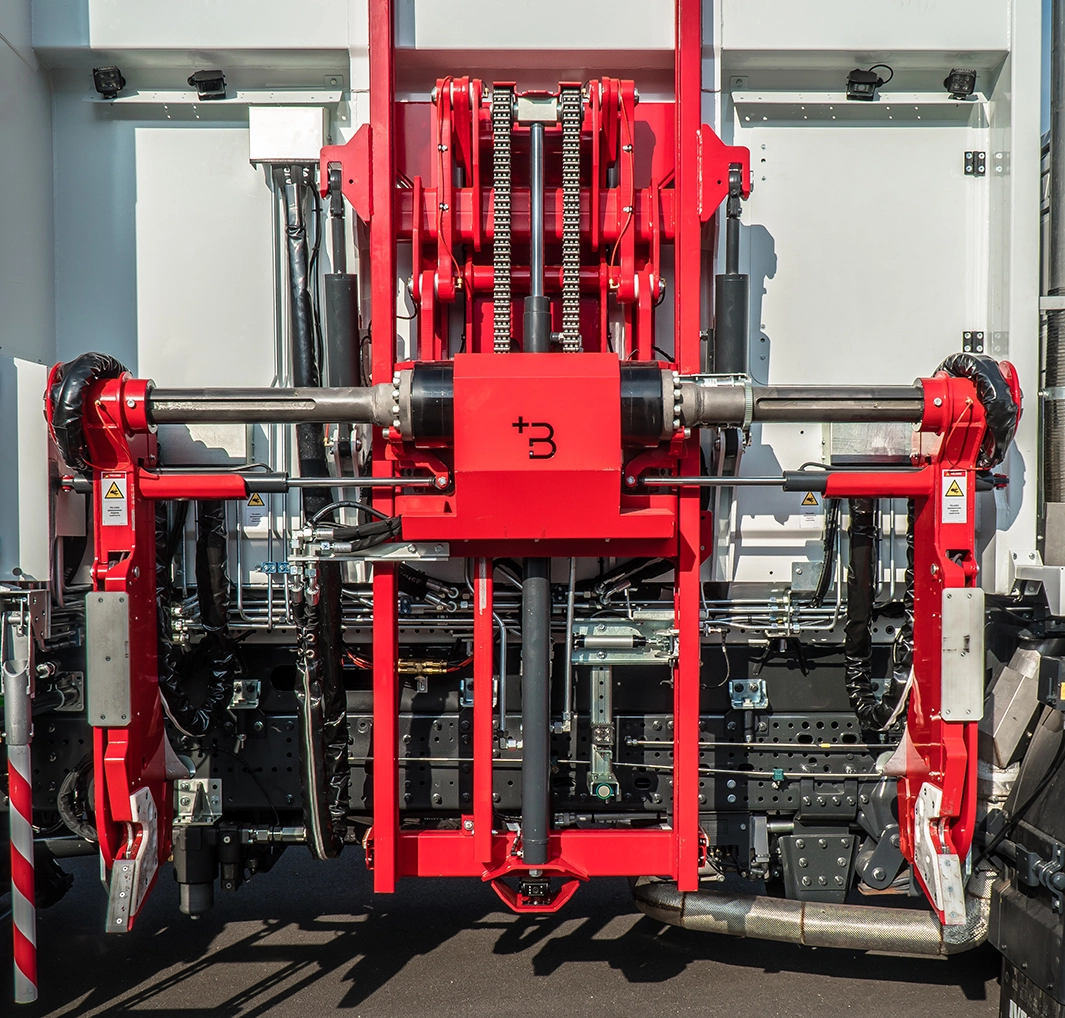

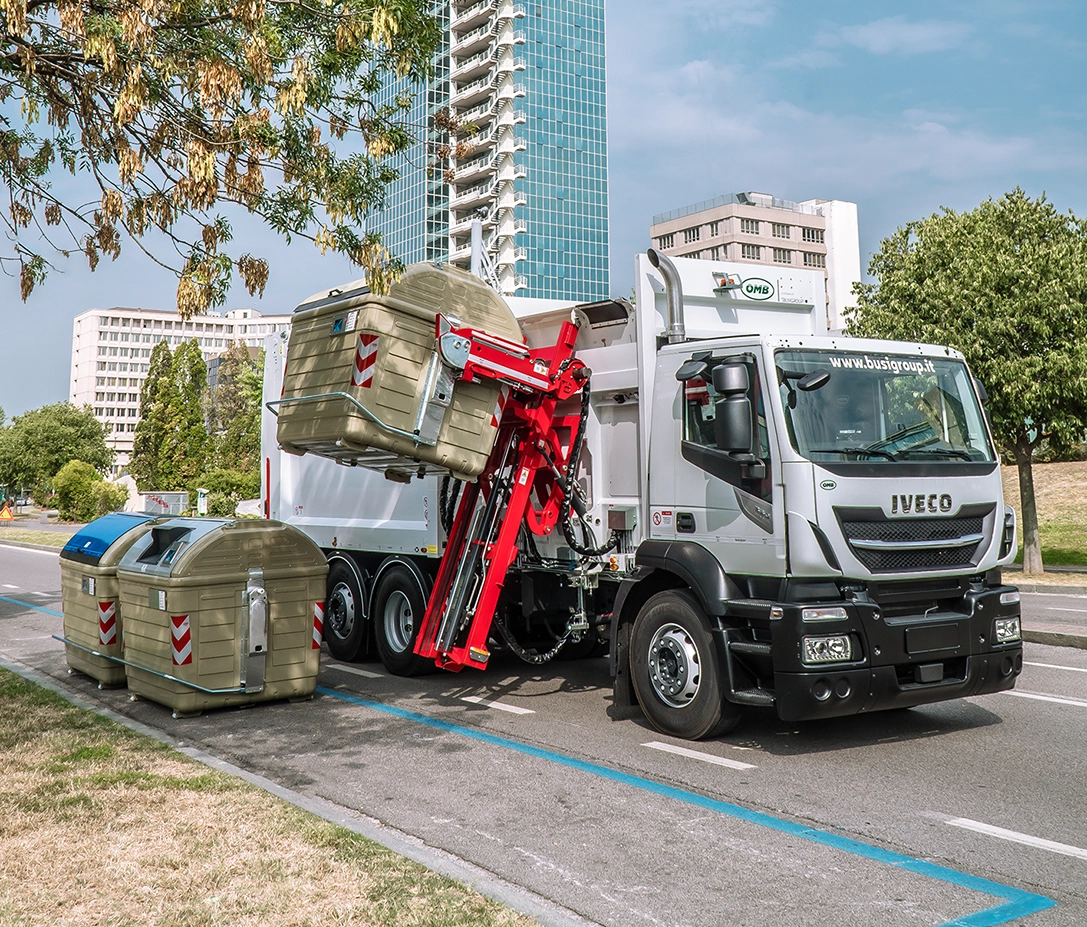

The CMPL8 side compactor is the latest evolution of OMB Technology's solutions for waste collection with side system. The CMPL8 version is characterised by an innovative lifting system, which allows the containers to be picked up even if they are positioned close to the walls, and empting process takes place with an inclination of up to 60°, in order to facilitate the complete unloading of waste in a shorter time.

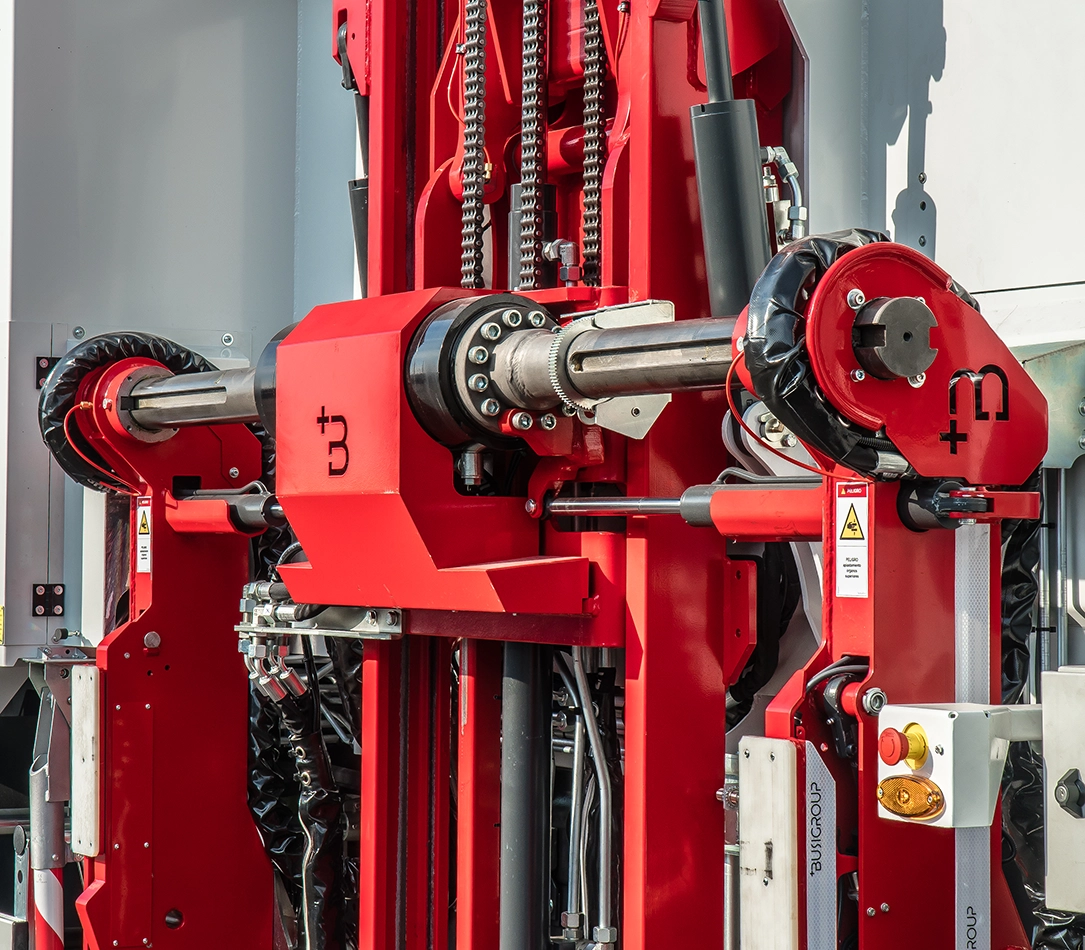

The proportional oleodynamic system combines speed, precision and fluidity of movement, reducing stress on the mechanics and the bins while reducing noise and energy consumption. Gripping can take place even if the box is close to the wall, and the transfer manoeuvre tilts the box up to 60°. The tailgate sealing is at full height to ensure high containment power.
The advanced electronics is the strong point of the CMPL8: further evolved compared to previous models, it represents a benchmark in the sector, while at the same time guaranteeing a distinct ‘user friendly’ approach in all modes of use (operation-maintenance-failure search) of the compactor.
CMPL8 is equipped with 5 cameras for a precise view of manoeuvres and a 12‘’ display that allows 4 cameras to be viewed simultaneously.
Main Features
Standard equipment
LED work lights and rotating beacons
5 infrared cameras
Canvas rubber sealing in contact with the caisson
around the entire perimeter of the ejector plate to prevent the passage of waste
Reliable bin detection sensors with monitor feedback
Unloading cycle from the cabin
6mm Hardox bottom
Sealing between body and tailgate
up to 2000mm from the bottom of the hopper
Bottom of compaction chamber
Hardox 10 mm thick
Optional
Variants of the gripping group
Sliding hopper cover
Rapid press
Automatic greasing system
Selection of waste type
Emergency quick couplings
Waste mover in hopper
Hopper dust suppression
Bin disinfection system
Model variations
| CMPL 8 | VOLUME (m3) | WHEELBASE (mm) | GVM (ton) |
|---|---|---|---|
| CMPL 8 17 | 17 | 3900 - 4200 | 18 |
| CMPL 8 21 | 21 | 3900 - 4200 | 26 |
| CMPL 8 23 | 23 | 4200 - 4500 | 26 |
| CMPL 8 25 | 25 | 4500 - 4800 | 26 |
| CMPL 8 29 | 29 | 5100 | 32 |
