Tank
CST

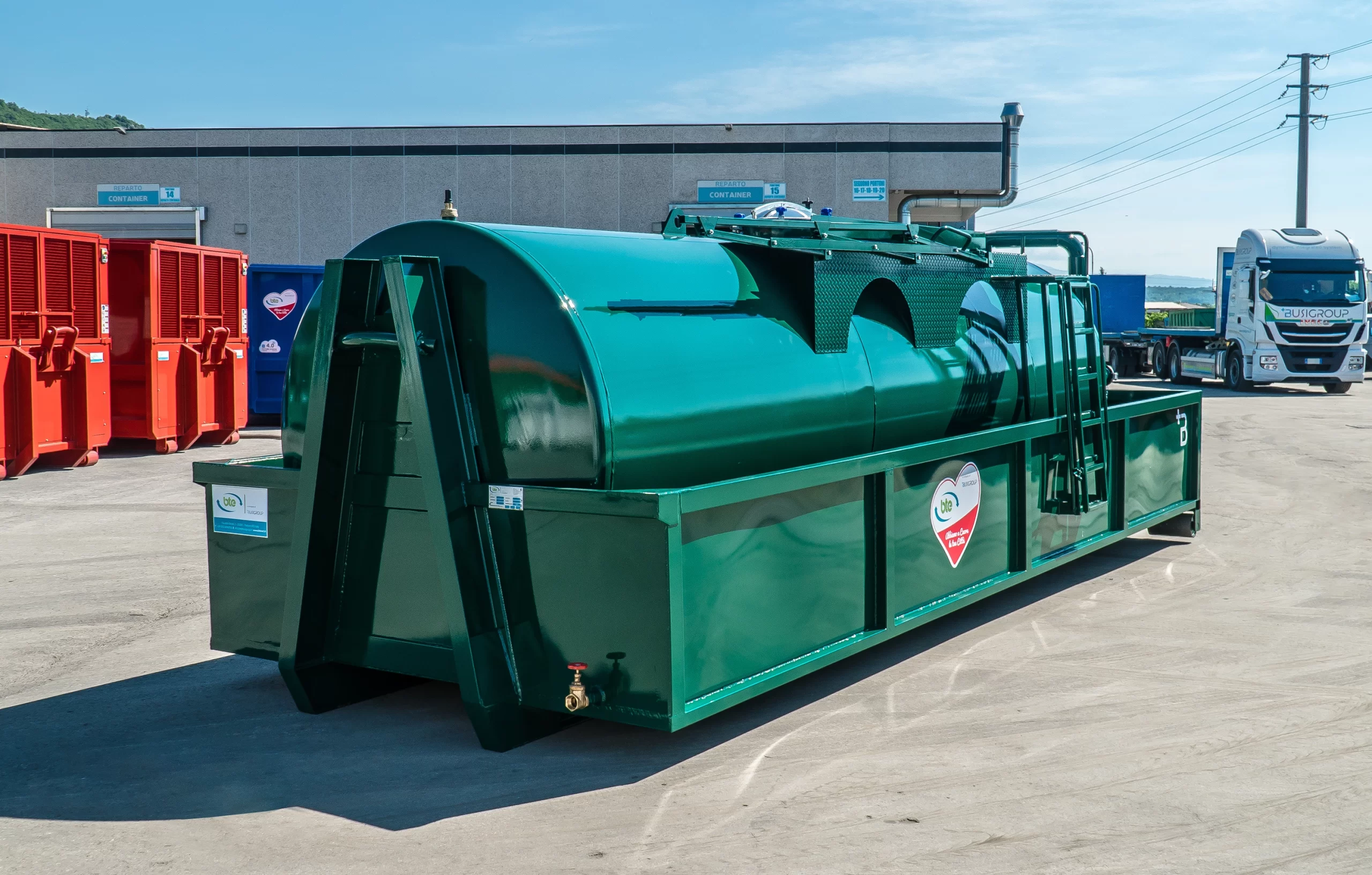

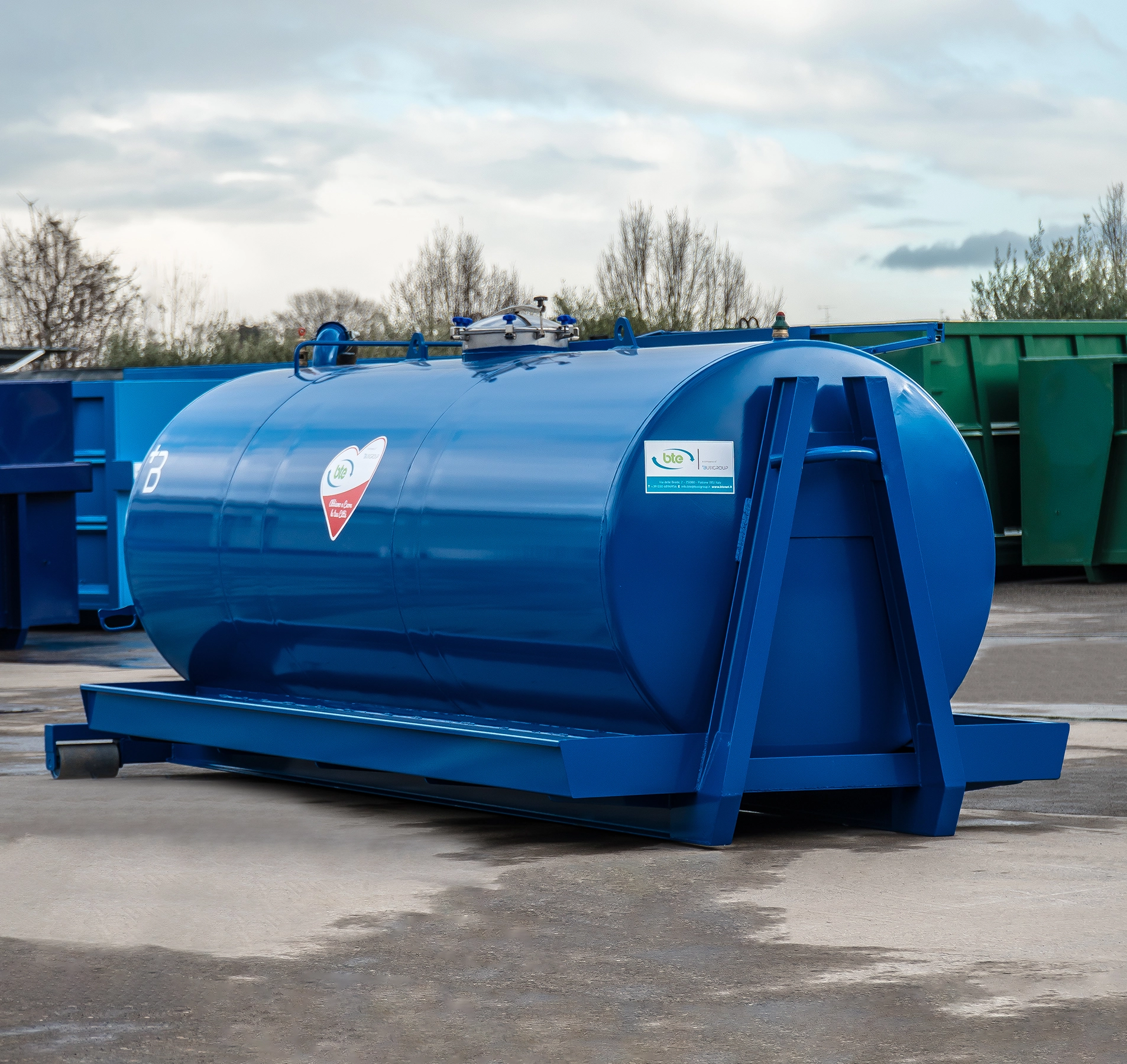

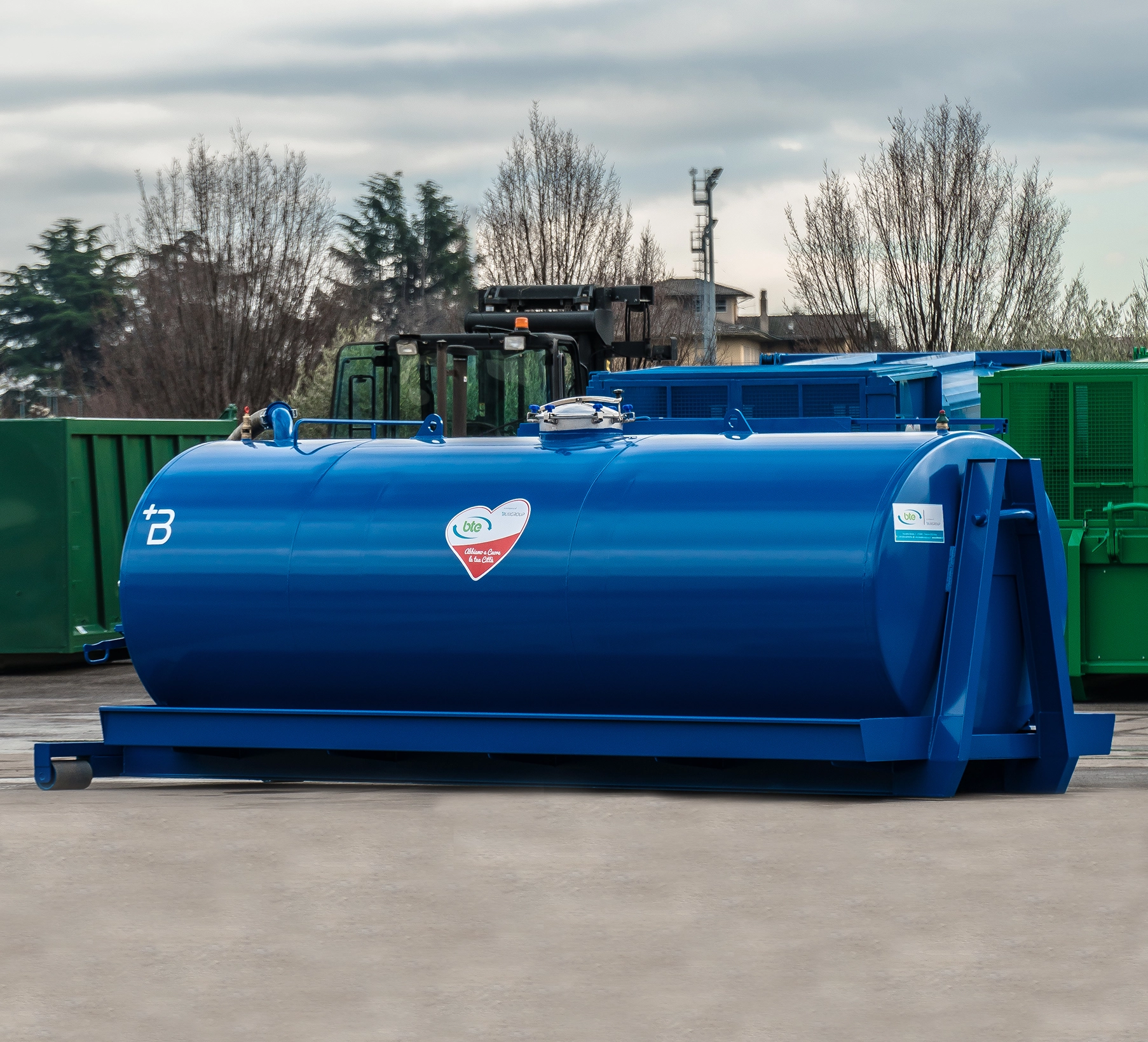

Roll-off tanks for transporting liquid materials
- S235JR steel tank with a capacity of 12000 litres equipped on a roll-off cradle
- Tank diameter 1700 mm, length 5600 mm
- Roll-out cradle length 6200 mm
TE Roll-out Tanks for transporting water or non-aggressive liquid materials are perfect for agricultural or civil defence use or in all industrial plants handling liquids, greases or special slurries.
Main Features
Standard equipment
S235JR steel tank
capacity 12000 l set up on roll-off cradle
Tank
diameter 1700 mm, length 5600 mm

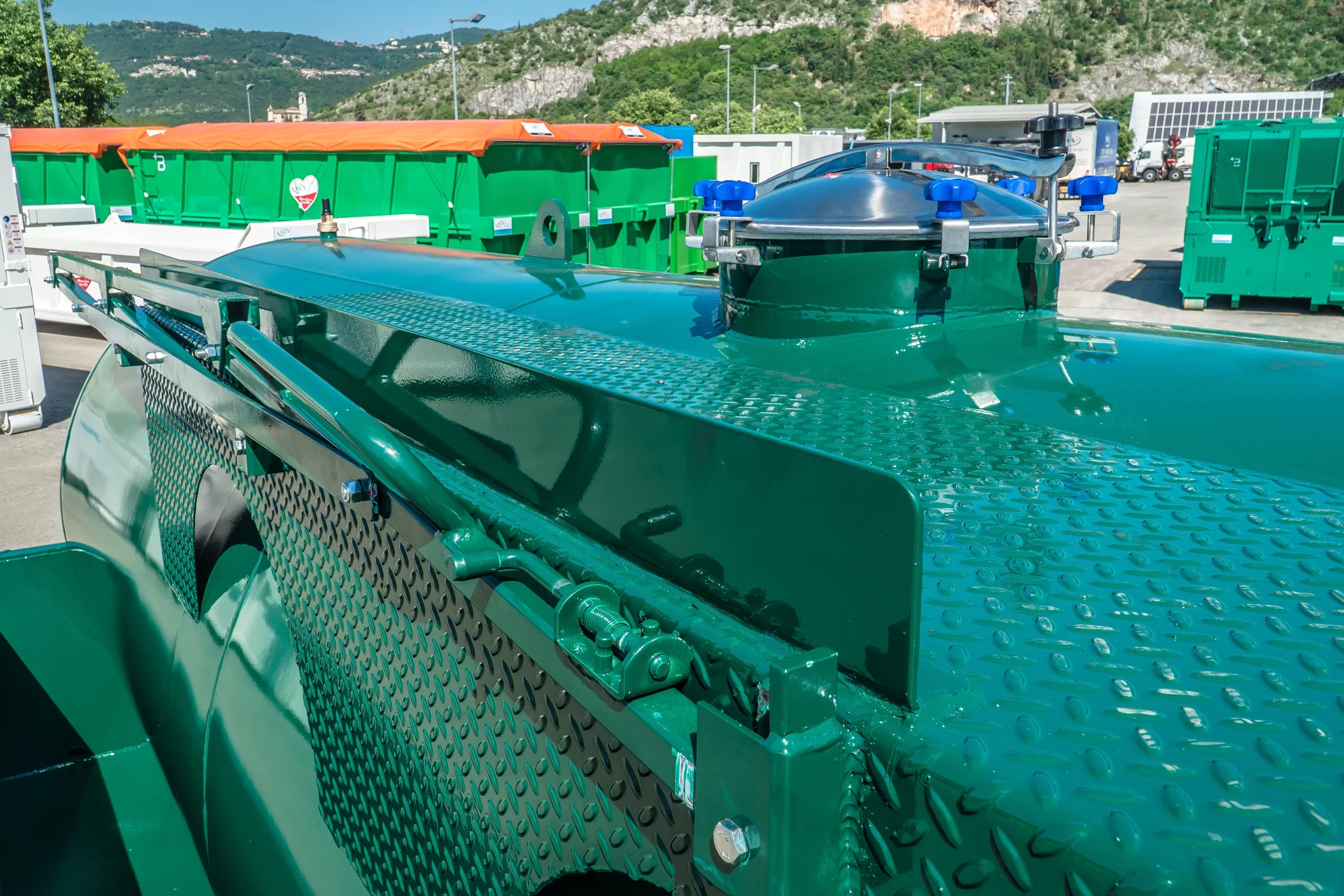

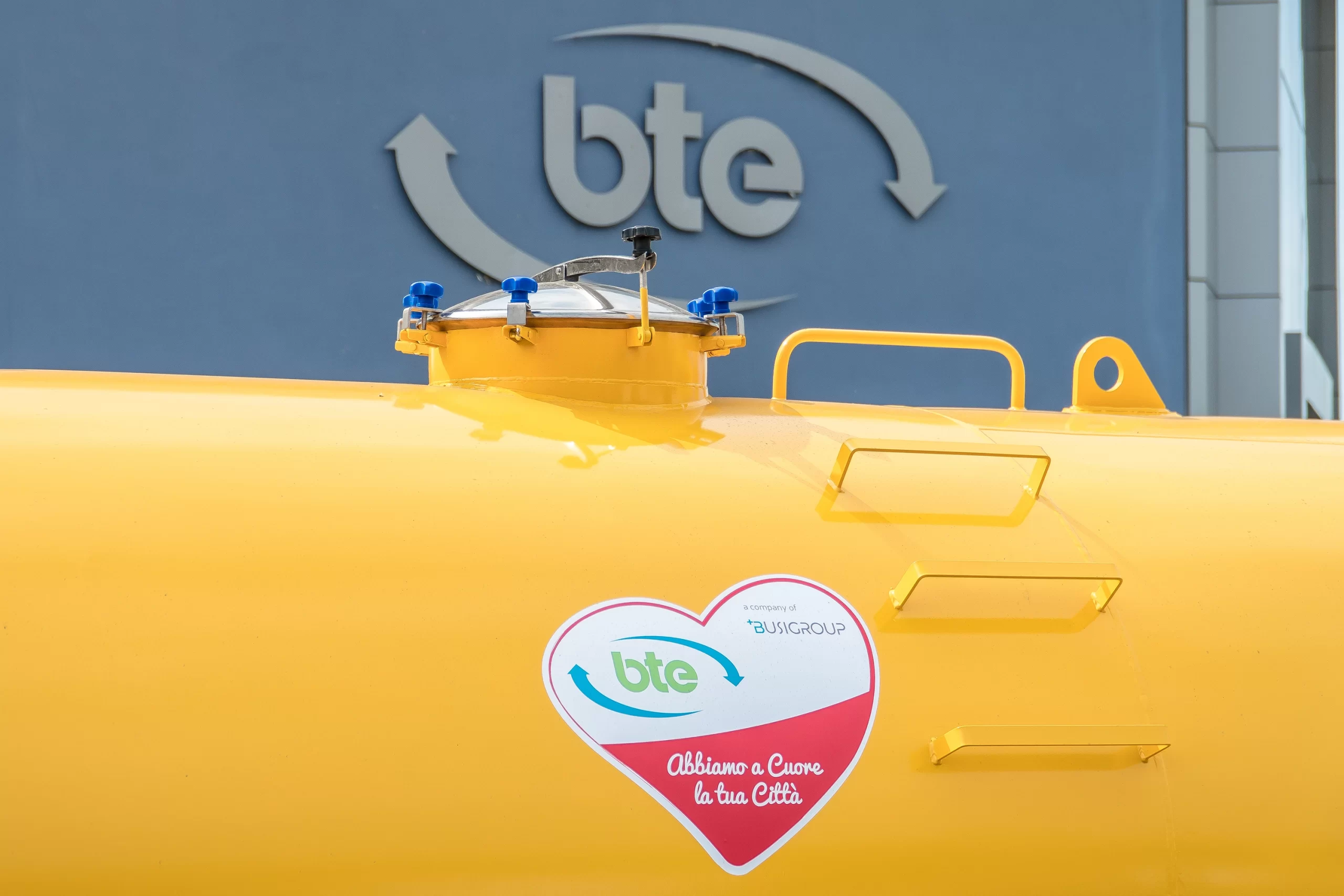

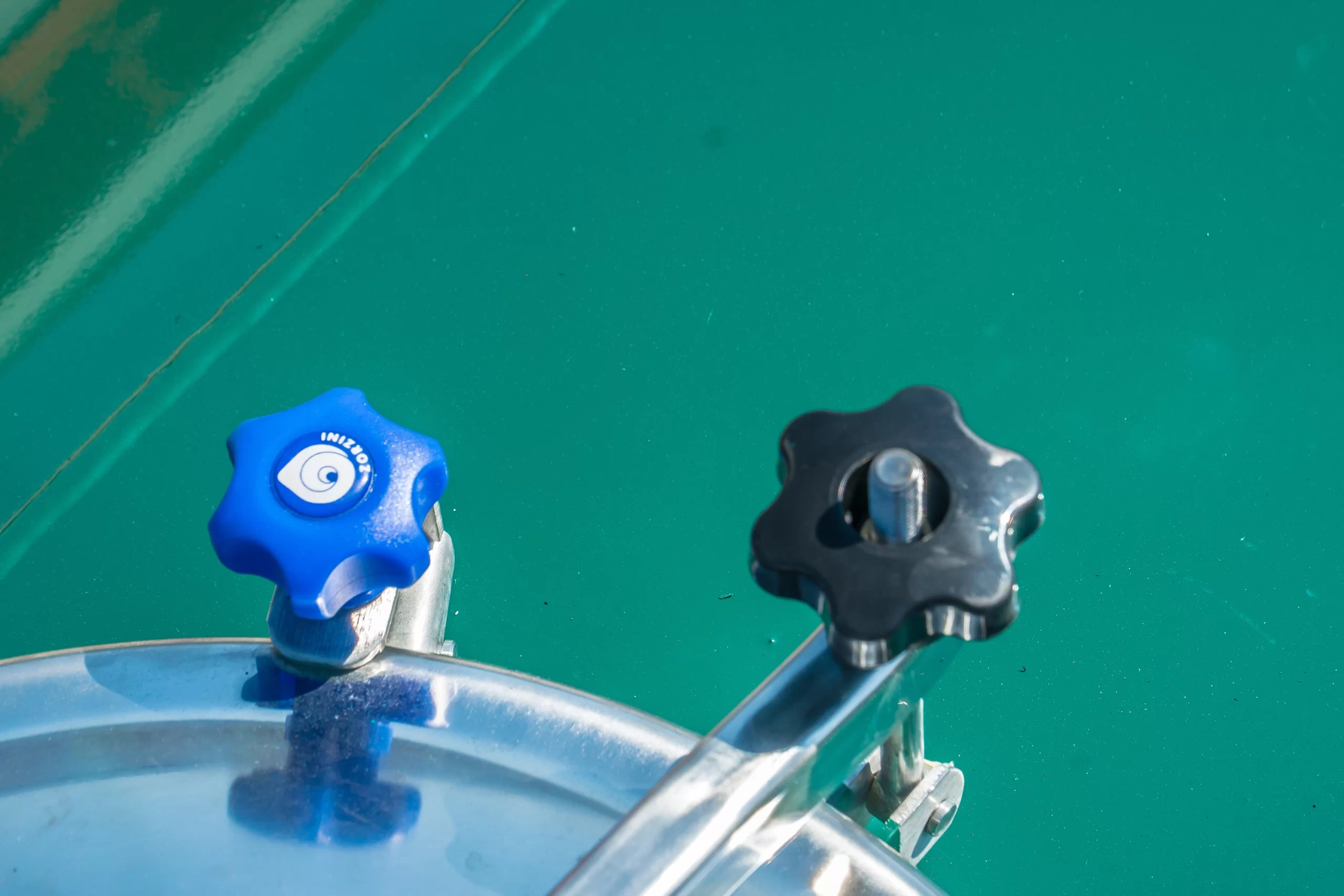

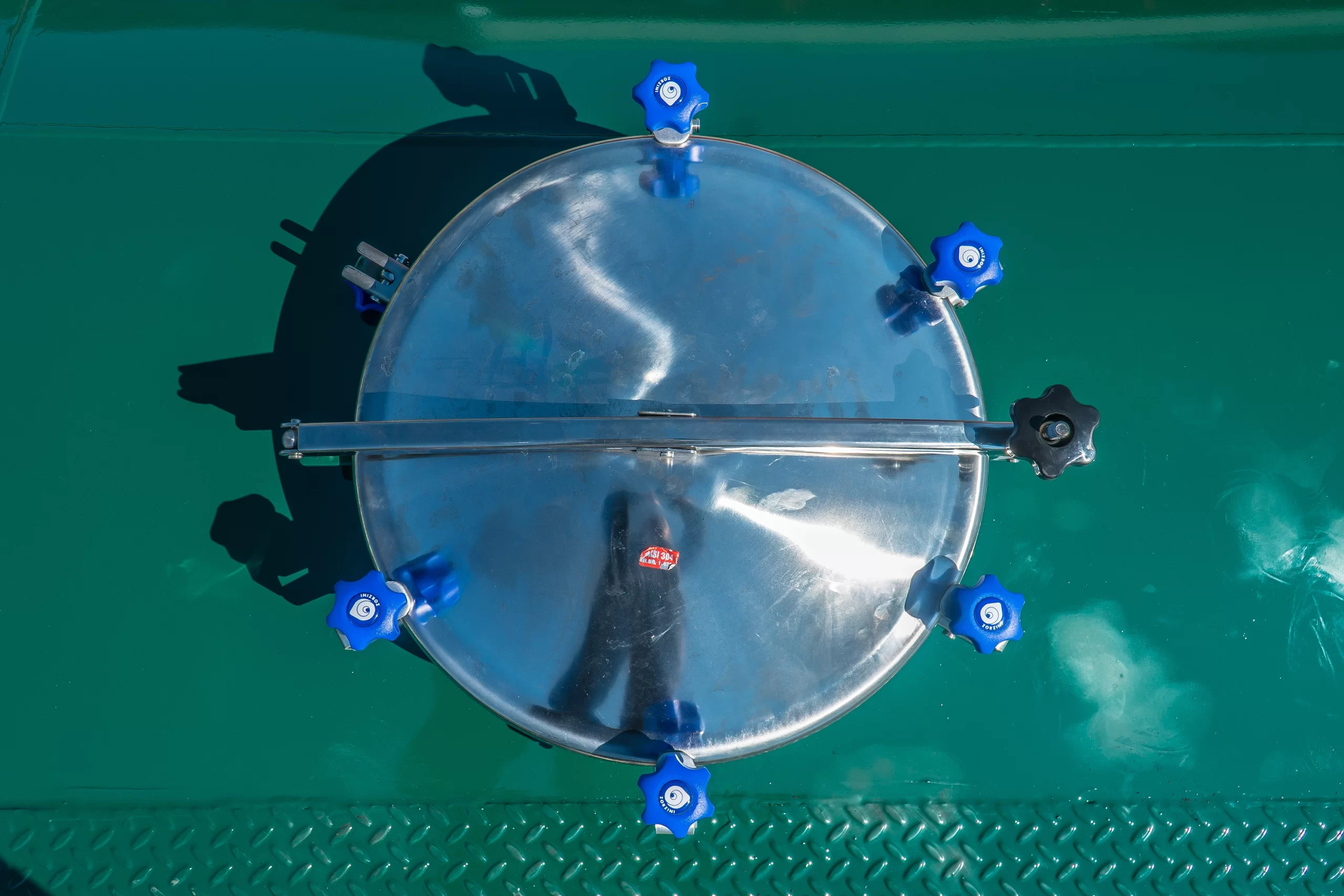

Upper manhole with quick opening
N.1 dia=450mm
Ladder
to geto to the manhole
Inner breakwaters
N.2

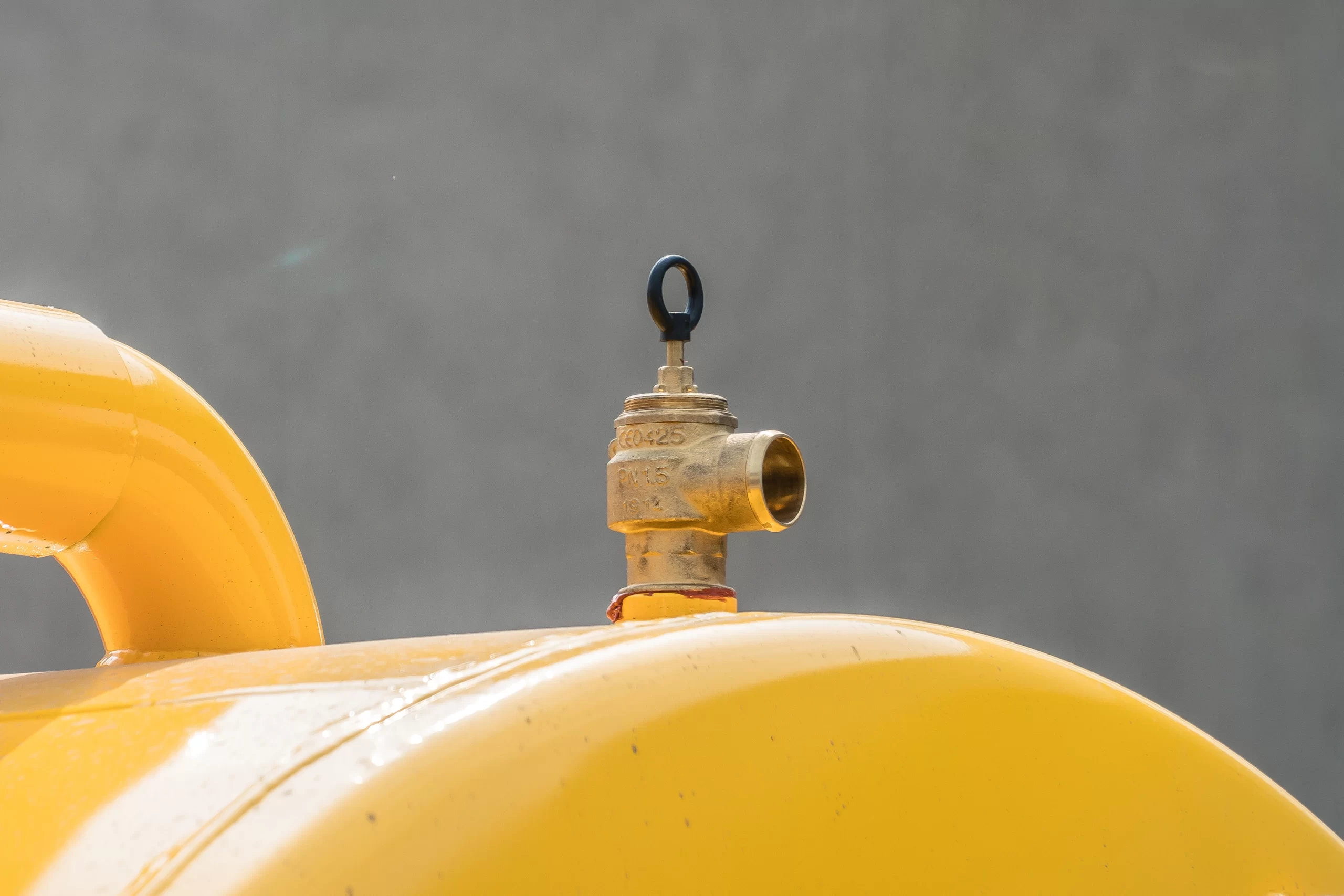

Upper vent valves
N.2

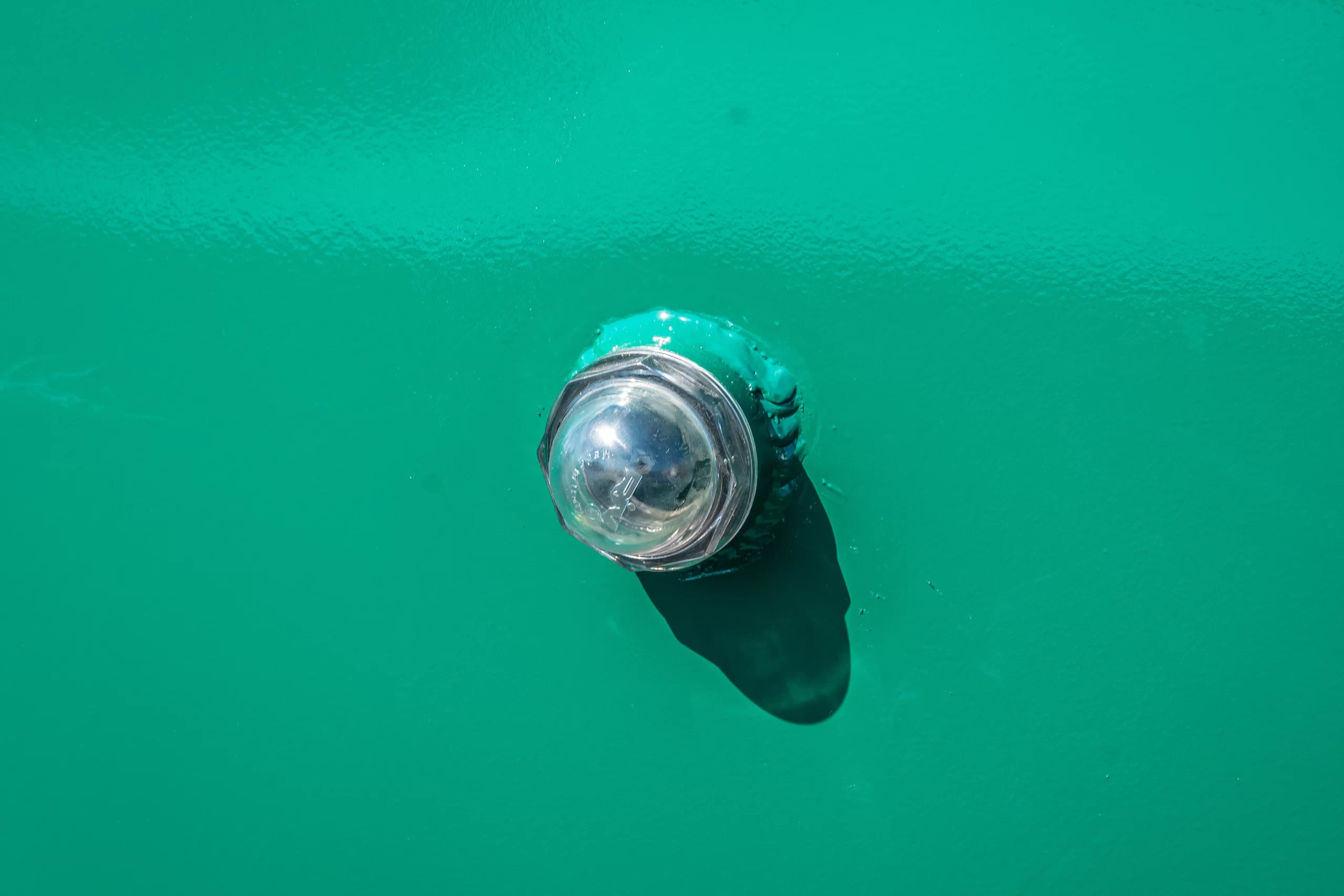

Liquid level inspection window
N.3

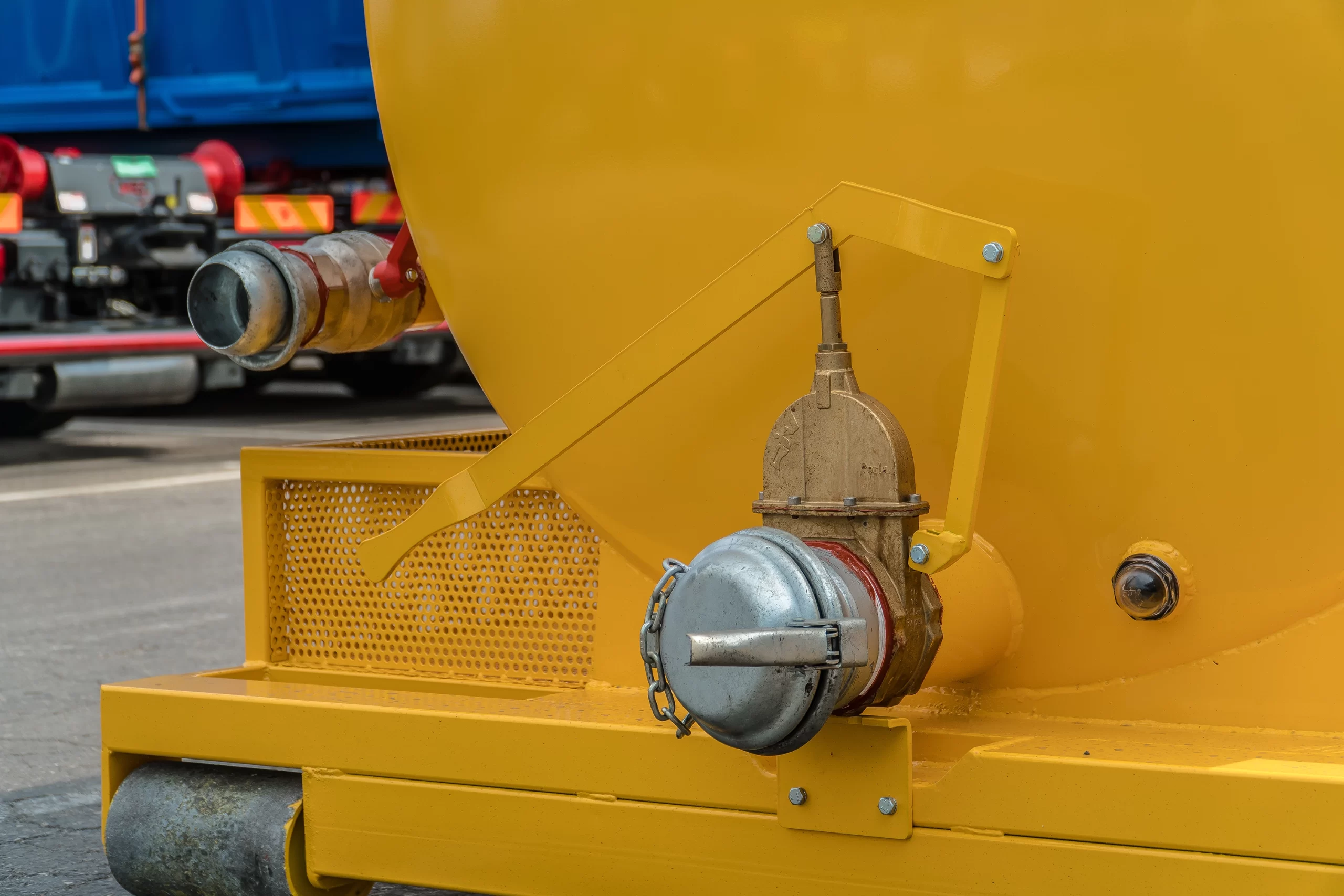

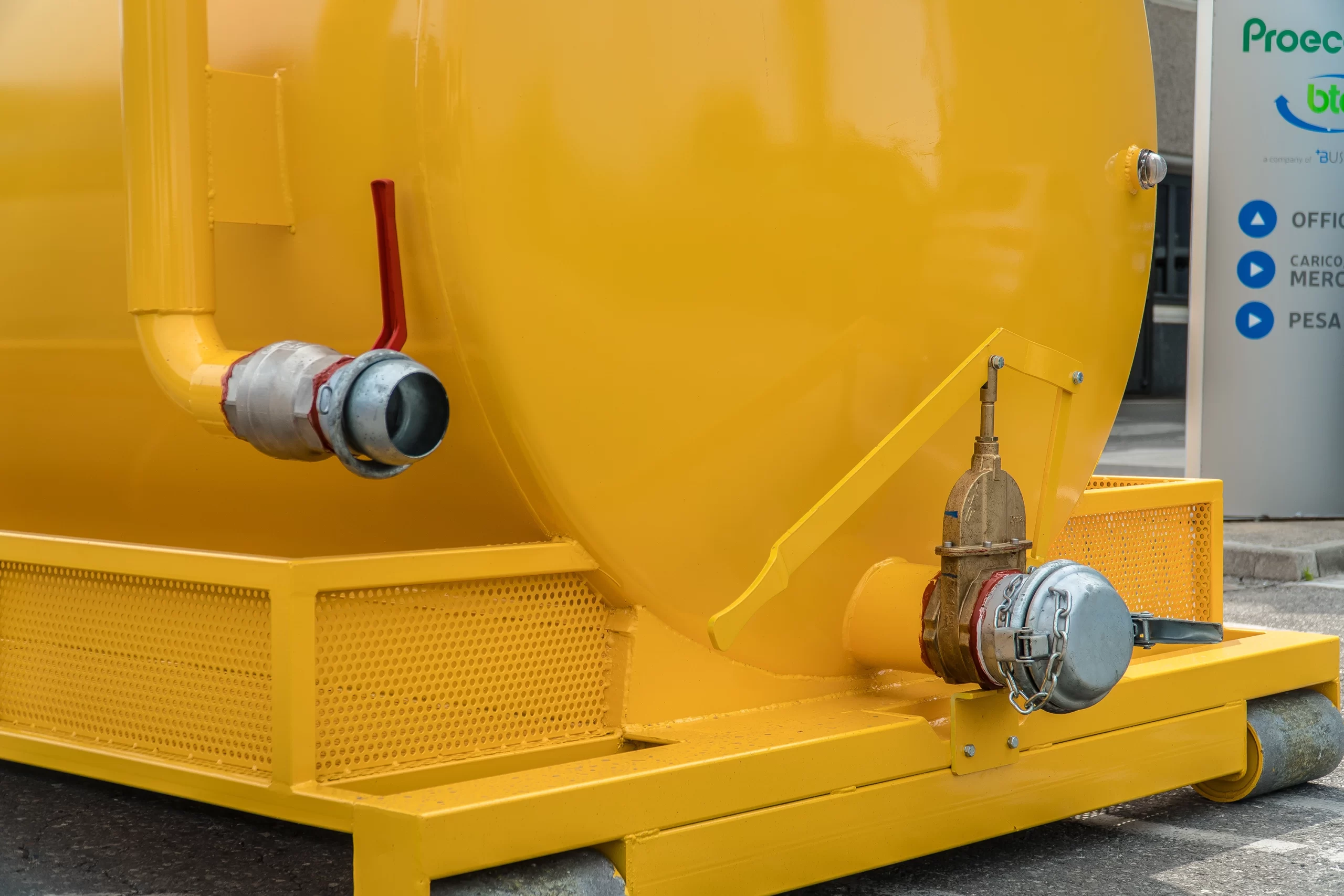

6'‘ drain with 6’' valve/gate
with manual FF lever guillotine and M spherical end cap
4‘' M threaded load with 4'’ FF ball valve
N.1
Optional
Second superior manhole
Side tube holder in sheet metal or perforated sheet metal
Hydraulically openable bottom

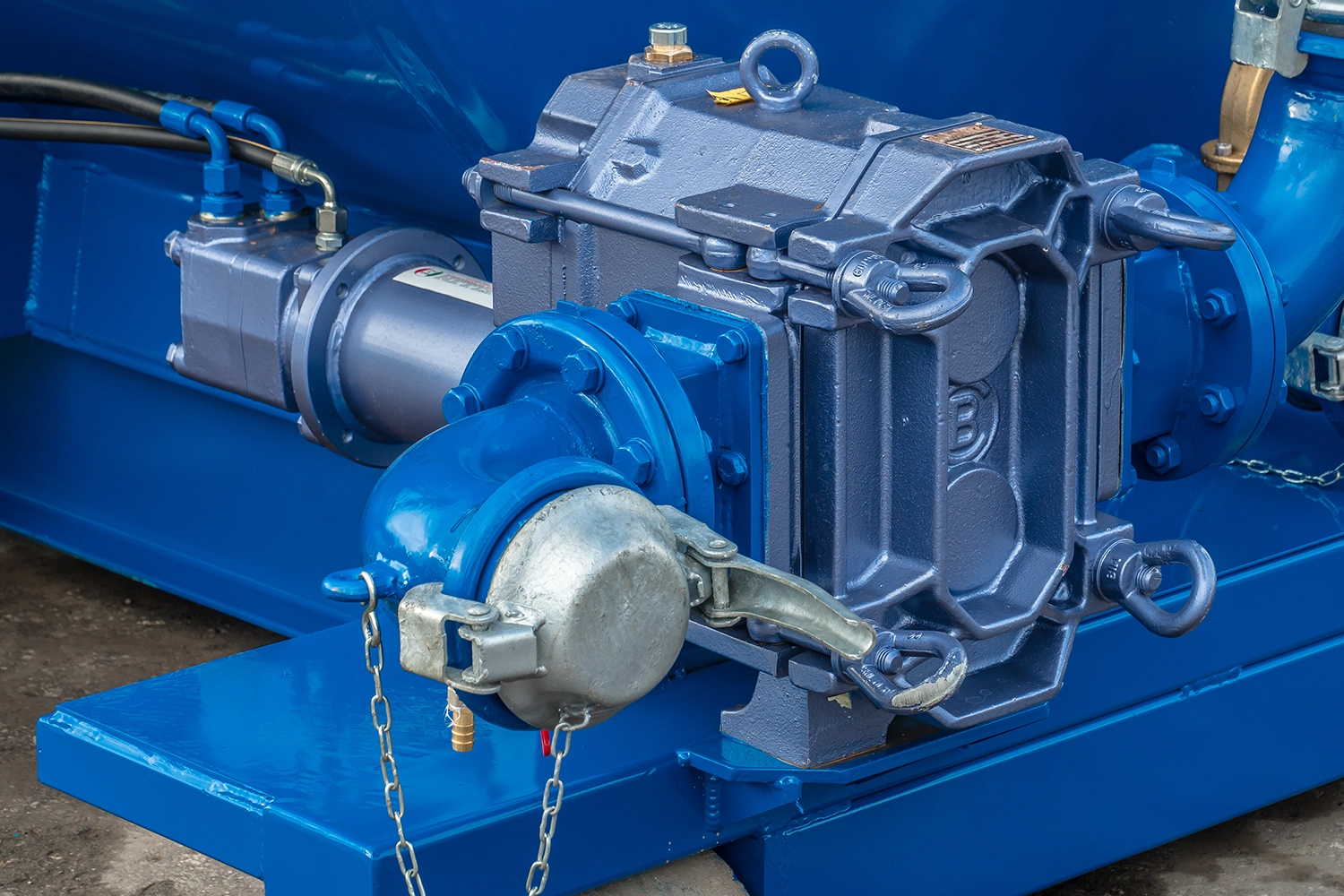

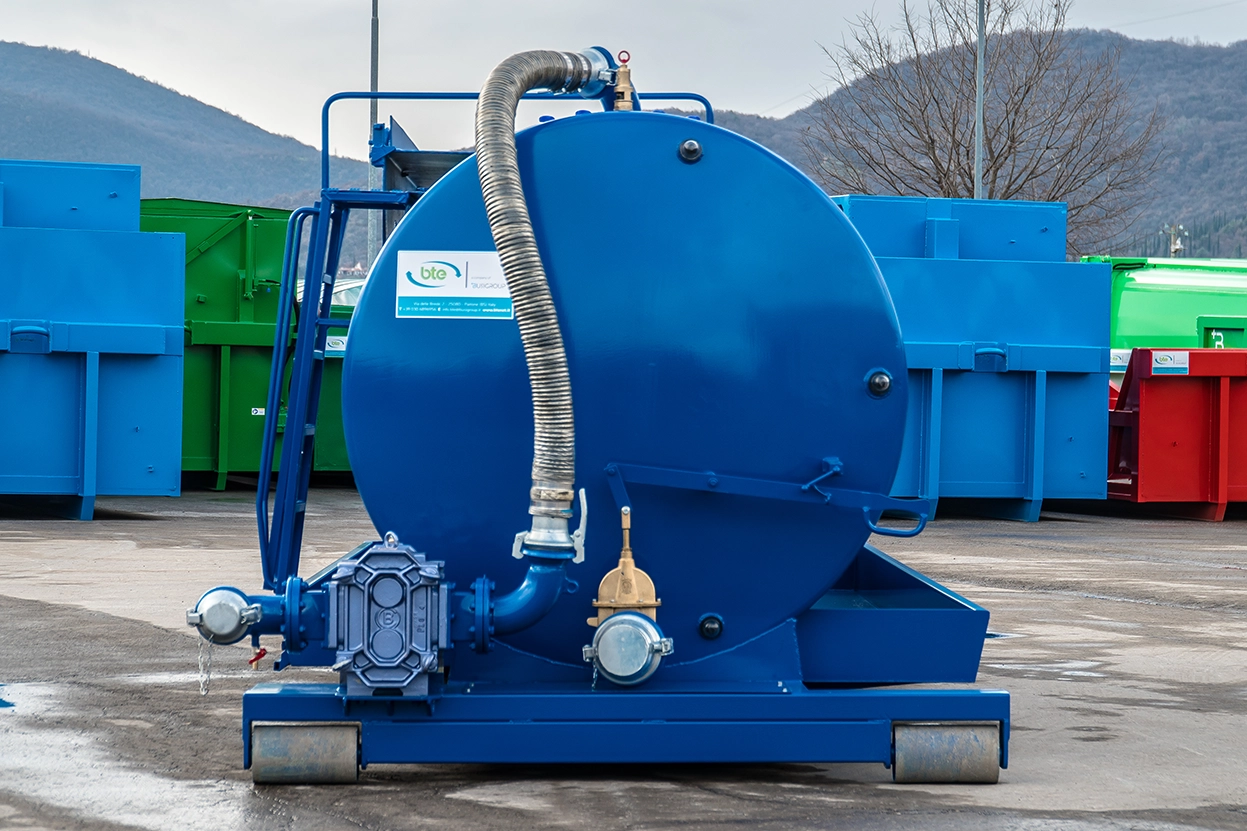

Bellin lobe pump type PLG 1500/P
Upper gangway with folding handrail

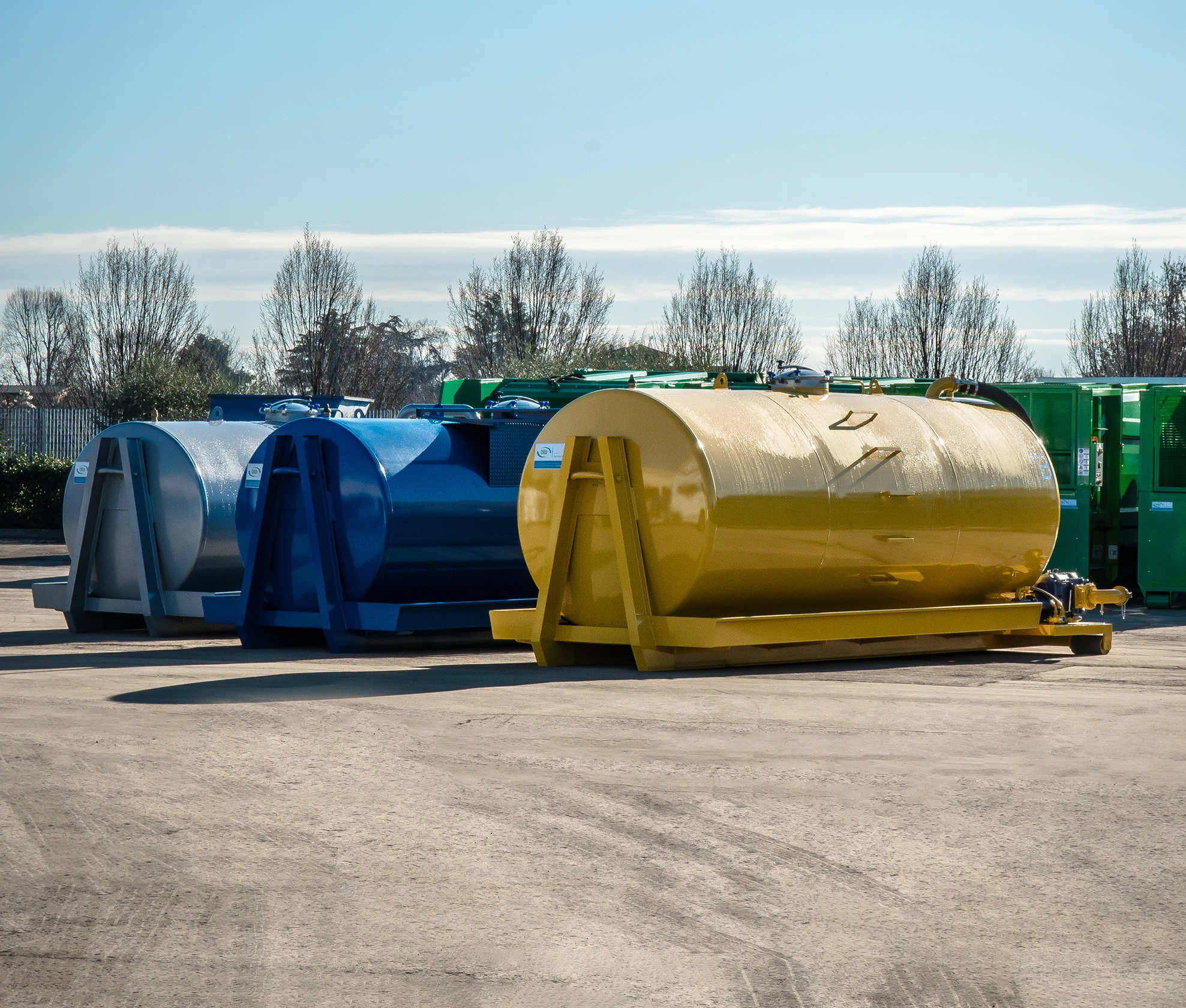

Model variations
| VOLUME (Lt) | DIAMETER (mm) | TANK LENGHT (mm) |
|---|---|---|
| 8000 | 1500 | 4400 |
| 12000 | 1700 | 5600 |
| 14000 | 1800 | 5900 |
