ACB
Compactor
The horizontal ram compactor that can be opened in half for easy ejection of materials
- Ideal in tight loading and unloading spaces
- Simplified unloading
- Thrust of up to 50ton
- Auxiliary control panel
- +B Connect System

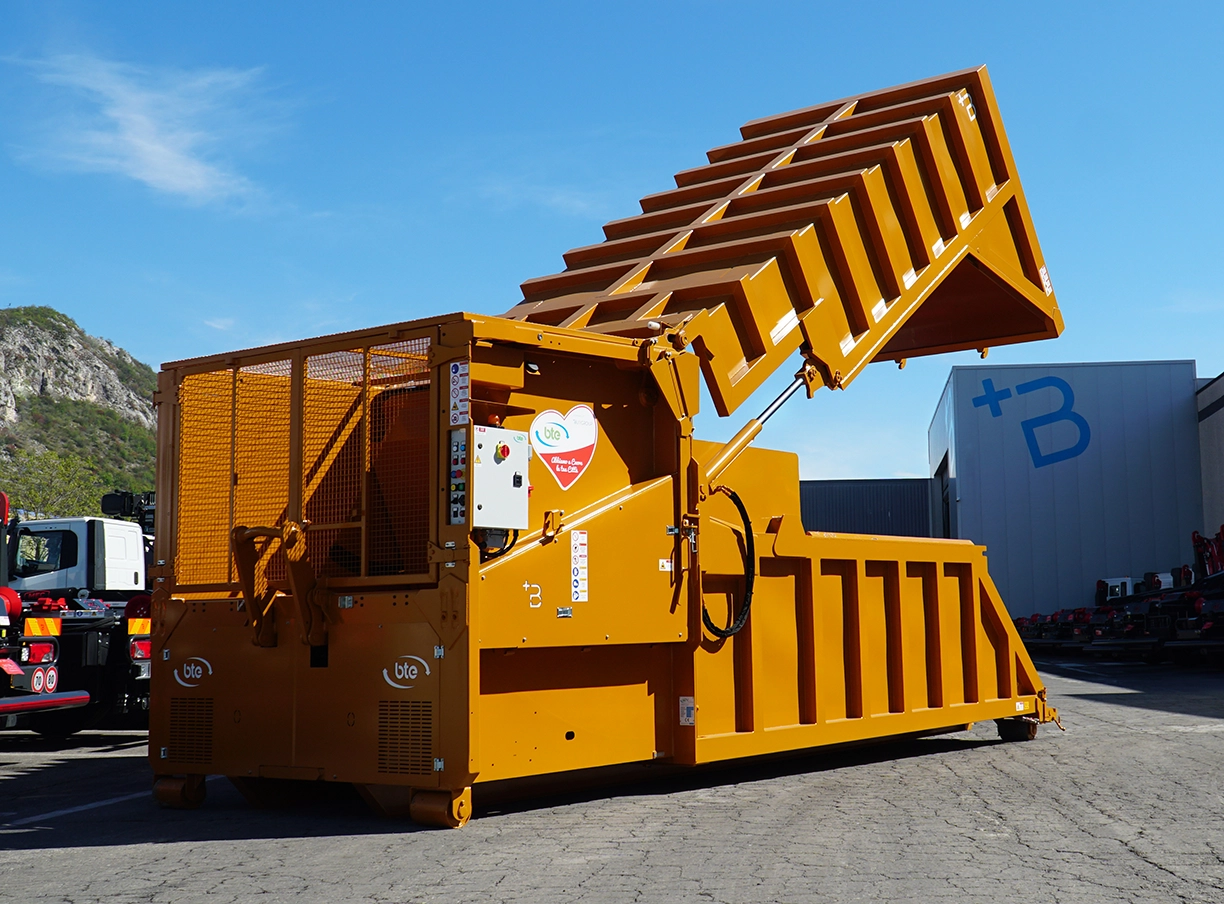

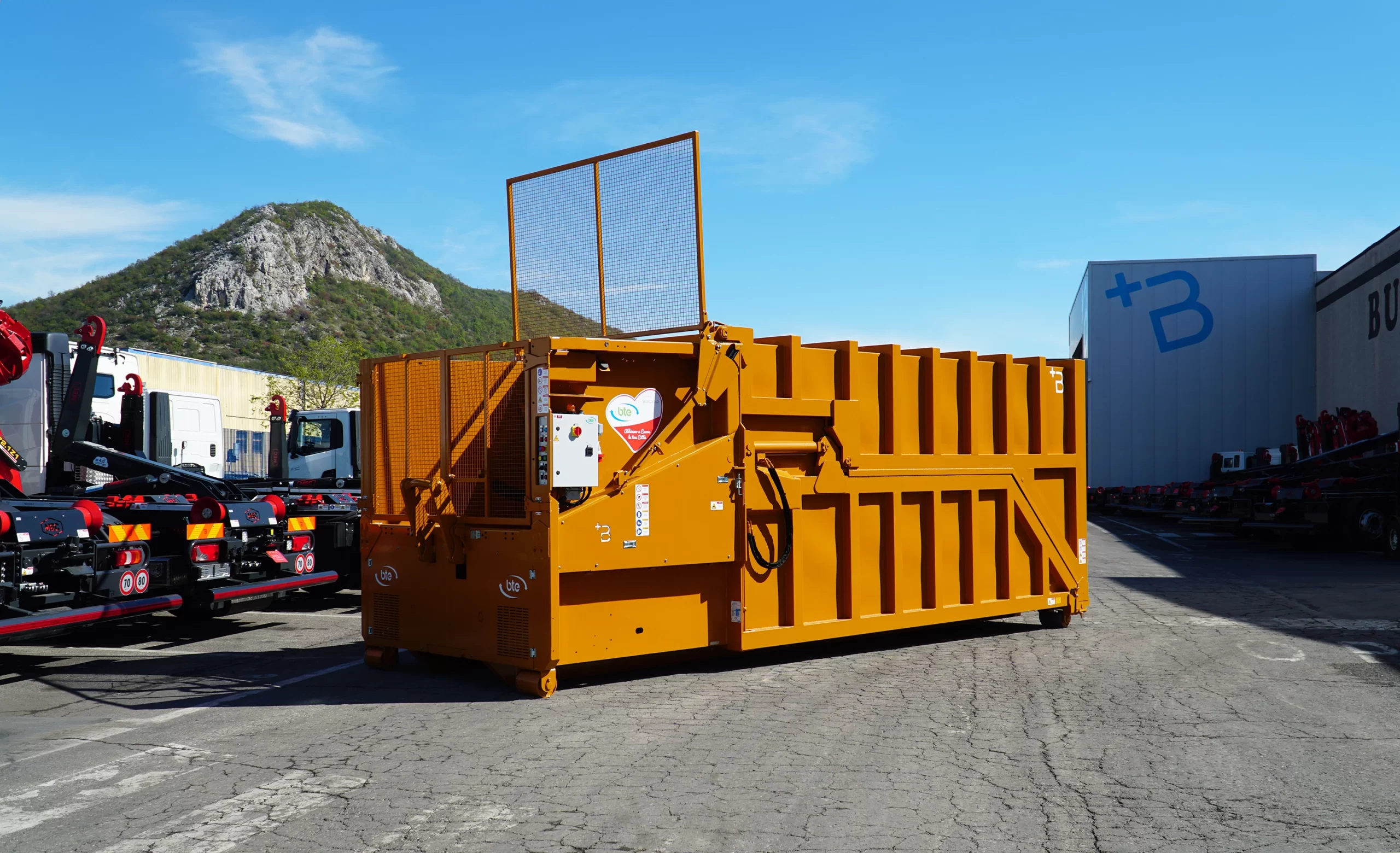

The ACB Roll-off Horizontal Ram Compactor is a variant of the standard Horizontal Ram Compactor and is characterised by a container body that opens in the middle, allowing the compacted material to be ejected quickly and easily. This version is particularly suitable for the treatment of waste that, once compacted, is difficult to eject, such as plastics, polystyrene and cardboard.
Compaction is carried out by means of a horizontally moving blade, the thrust can reach 50ton and the compaction cycle takes 45 seconds.
The compactor is also available in a version with a longitudinal dividing bulkhead (1/3 and 2/3) along the entire length and height of the compactor for separate collection of 2 types of material.
Main Features
Optional
Automatic start with sensors
Optical and acoustic signalling of filling status
Auxiliary control panel for remote control
longitudinal dividing bulkhead (1/3 and 2/3)
Model variations
| ACB | VOLUME (m3) | LENGTH (mm) |
|---|---|---|
| ACB 20 | 20 | 6300 |
| ACB 22 | 22 | 6800 |
| ACB 25 | 25 | 7500 |
